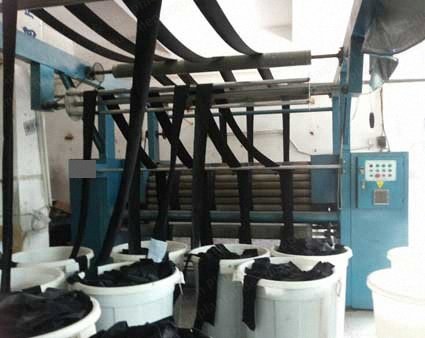

NovaStar, Velcro Tape Plant, Complete Production Line, with Warping, Weaving, Finishing, Brushing, Cutting, and Slitting (New)

NovaStar, Velcro Tape Plant, Complete Production Line, with Warping, Weaving, Finishing, Brushing, Cutting, and Slitting

Description

  1. Offer 001: Warping Machine
    1. Drum driving pneumatic controlled warping machine
    2. With creels of 360 positions
    3. Speed: 0 to 225 m/min
    4. Size: 1.75 x 0.7 x 1.05 meter + 2.3 x 0.4 x 0.6 meter
    5. Power: 1.5 kW
    6. 380 V / 3 phase
    7. 50 to 60 Hz
    8. Quantity: 2

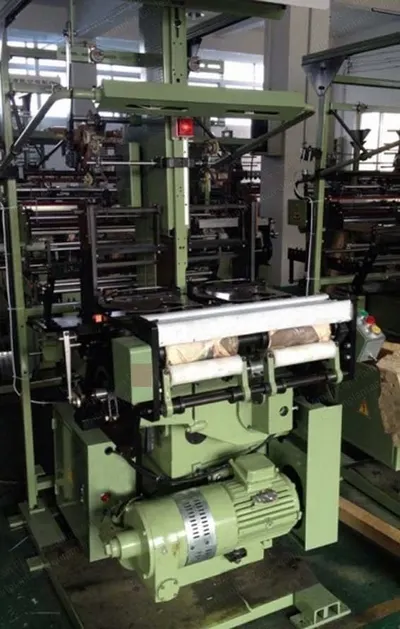

  2. Offer 002: Velcro Hook Weaving Loom for Myk2/175
    1. With 2 weaving spaces for tape width 170 mm
    2. With beam rack of 8 beam positions
    3. With auto weft feeding system
    4. Output: 45 m/hr of 170 wide tape
    5. Size: 1.7 x 1.0 x 2.24 meter
    6. Power: 1.5 kW
    7. 380 V / 3 phase
    8. 50 to 60 Hz
    9. Quantity: 8
  3. Offer 003: Velcro Loop Weaving Loom for Myk2/175
    1. With 2 weaving spaces for tape width 170 mm
    2. With beam rack of 8 beam positions
    3. With auto weft feeding system
    4. Output: 45 m/hr of 170 wide tape
    5. Size: 1.7 x 1.0 x 2.24 meter
    6. Power: 1.5 kW
    7. 380 V / 3 phase
    8. 50 to 60 Hz
    9. Quantity: 8
  4. Offer 004: Starching and Finishing Machine
    1. Specifications as per the confirmed data sheet
    2. Size: 16.0 x 4.2 x 5.2 meter
    3. Power: 12.4 kW
    4. 380 V / 3
    5. 50/60 Hz
    6. Quantity: 1
  5. Offer 005: Brushing Machine
    1. Working width: 2000 mm
    2. With 24 raising rollers Ø 62 mm
    3. And steel wire #31
    4. Speed of fabric: 17 to 18 meter/minute x n tapes
    5. Size: 7.0 x 3.8 x 3.0 meter
    6. Power: 8.5 kW
    7. 380 V / 3
    8. 50/60 Hz
    9. Quantity: 1
  6. Offer 006: Hook Cutting Machine
    1. Cutting width: 2 tapes x max. 175 mm
    2. Output: approx. 160 m/hr x 2 tapes
    3. Size: 1.9 x 1.3 x 1.0 m
    4. Power: 2.2 kW
    5. 380 V / 3
    6. 50 to 60 Hz
    7. Quantity: 2
  7. Offer 007: Slitting and Rolling Machine
    1. Working width: 220 mm
    2. Speed: 25 meter / 8 to 10 second x n rolls
    3. Auto length counting and controlling
    4. Auto tape un-rolling and rolling
    5. Size: 3.0 x 1.0 x 1.5 meter
    6. Power: 1.5 kW
    7. 380 V / 3
    8. 50 to 60 Hz
    9. Quantity: 1
