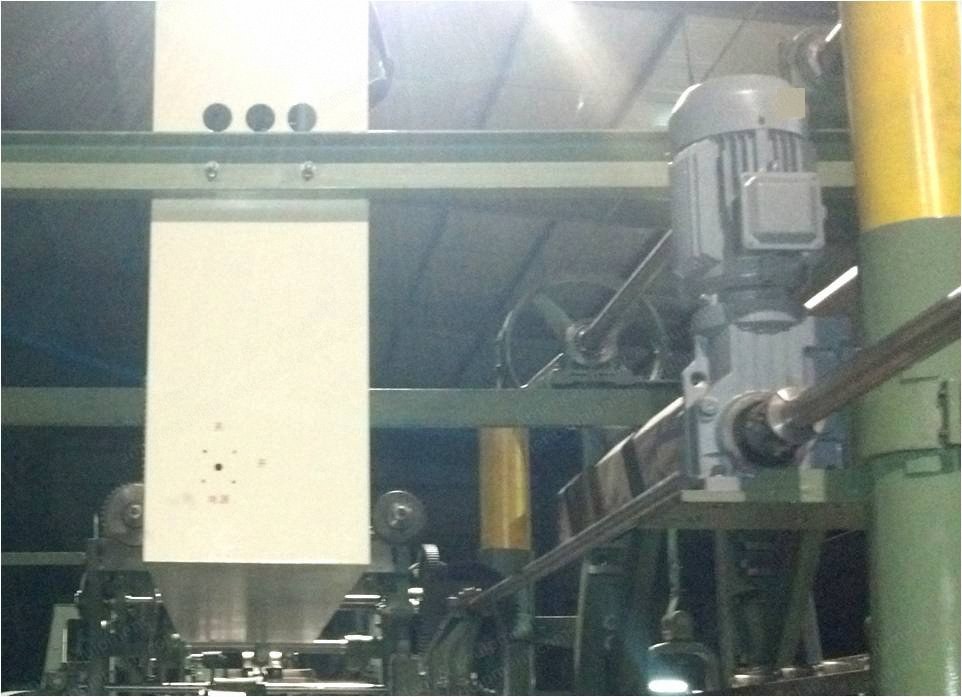

NovaStar, DB101, Hackling with Auto Spreader Machine, Width 4520mm, Capacity 60-110 kg/h
Scroll to zoom
100%
Description
Overview
Hackling with auto spreader machine is a new process device to have best fiber hackle and manufacture sliver composed by hackling machine and auto spreader machine, which is newly developed by our company.

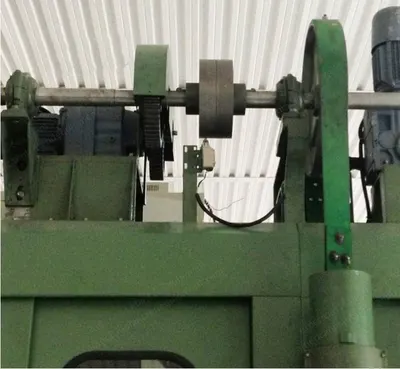

There are 8 reduction gears and 2 servo motors installed in the complete machine.
By adopting such modern control methods as plc, inverter and touch screen, mechanical transmission system and pneumatic system shall be integrated, and process actions shall be controlled to realize automatic and continuous operations from flax fiber to sliver.
Shortens original process route and enjoys such features as high electromechanical integration, convenient adjustment for hackle/slivering parameters, high efficiency and high quality.
Worker-saving and time-saving (5 to 7 persons reduced each shift), low labor intensity and low maintenance and management cost.
Internationally advanced technology is adopted for the equipment.
Main Technical Parameters
Hackle lifting height: 650 mm (max)
Running speed of hackle clamp: 7 to 12 times/min (stepless adjustable)
Running speed of needle bar: 20 to 45 m/min (stepless adjustable)
Numbers of hackles process: 18
Drawing range: 17.61 to 21.41
Sliver specification: 15 to 45 g/m
Output speed: 56 to 79 m/min (stepless adjustable)
Equipment production capacity: 60 to 110 kg/h (sliver)
Total installed power: 20.65 kw (actual power consumption: 12.5 kw)
