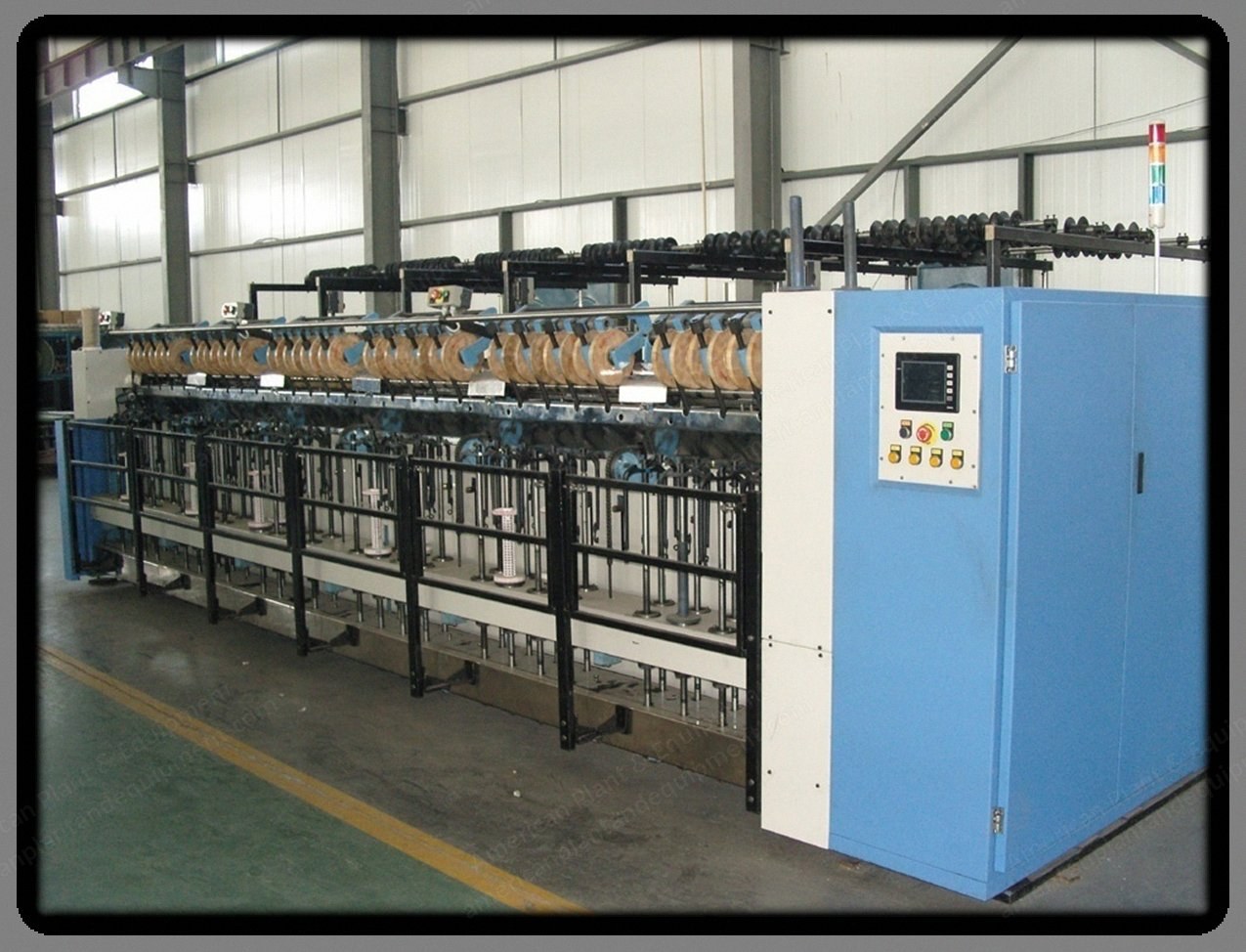

Has abandoned differential mechanism, cone drum forming mechanism, and lifting and reversing mechanism installed on conventional roving frame
Transmission system of the complete machine has no change gear and is driven by 5 independent servo motors
Adopts the most advanced five-shaft link and closed-loop control technology to make the machine more simple and efficient
Features high electromechanical integration, convenient adjustment for carding/silvering forming parameters, high efficiency and high quality, low labor intensity, and low maintenance and management cost
Ideal process device to replace conventional flax roving frame
Internationally advanced technology is adopted for the equipment
Specifications
Pitch number per set: 15
Number of spindles per pitch: 8
Number of spindles per set: 120
Numbers suitable for spinning: 1.2 to 3.8 nm
Drawing range: 8.5 to 12.5
Total drawing gauge: 459 mm
Spindle speed range: 650 to 900 r/min
Output speed: 14 to 31 m/min
Twist range: 29 to 42
Lifting stroke: 300 mm (max)
Total installed power: 18.1 kw (actual power consumption: 10 kw)
Dimension: 15220 (l) × 3660 (w) mm
