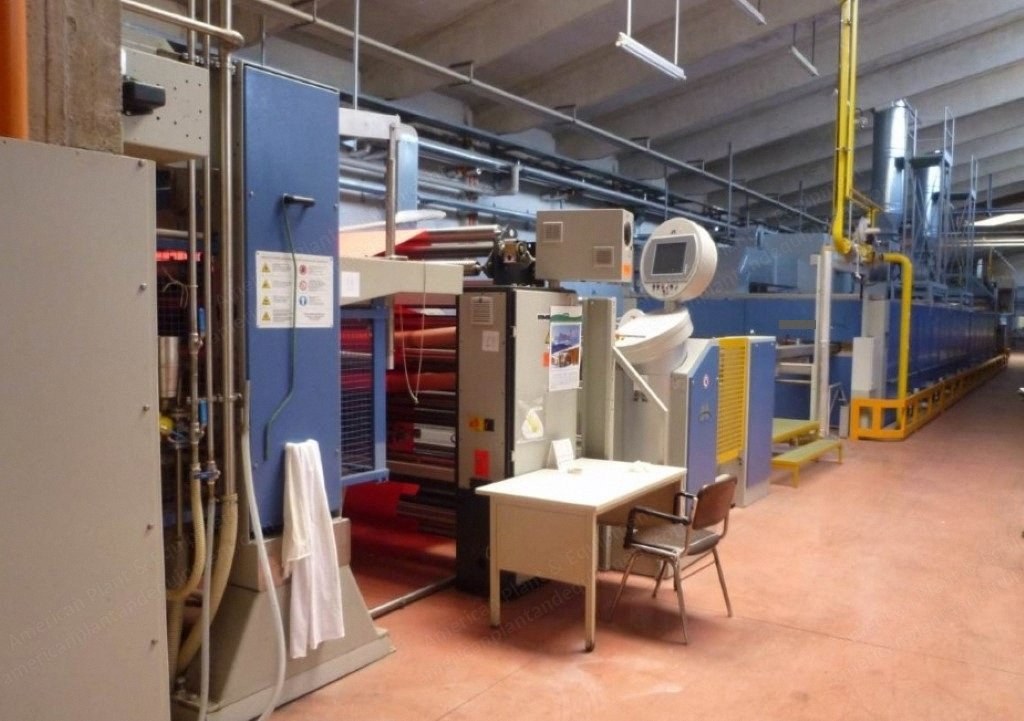

Monforts, Montex 6500 7F Twinair, 2012, 2200mm Working Width, 7 Chambers, Gas Heated

Monforts, Montex 6500 7F Twinair, 2012, 2200mm Working Width, 7 Chambers, Gas Heated

Description

  1. Overview
    1. Monforts stenter for knits
    2. Model: Montex 6500 7F Twinair
    3. 7 chambers gas heated
    4. Working width: 2200 mm
    5. Year: 2012
  2. Entry Section
    1. 3 bowl impregnation beta padder with double impregnation trough
    2. Entrance with Dogal spreader
    3. Mahlo Orthomat weft straightener, model: Air Rumc-12 with 4 optics, year: 2012
    4. Extended entry 6 m long
    5. Horizontal pin chain
    6. Entrance with Tandematic edge uncurlers
    7. Overfeeding
    8. Central support
    9. Steamer
    10. Glueing and edge trimming
  3. Chambers and Heating
    1. 7 chambers gas heated with 2 fans on every chamber
    2. 2 heat recovery devices
  4. Exit Section
    1. Exit with cooling zone
    2. A-frame batcher and folder
  5. Mahlo Equipment
    1. Mahlo Orthomat weft straightener, model: Air Rumc-12 with 4 optics, year: 2012
    2. Mahlo Famacont, year: 2012 – this device counts the threads at the entrance on the weft straightener and at the exit, allowing full control of the gramage of the fabric
    3. Mahlo Optipac – this device allows full control of the temperature of the fabric, regulating the machine in its speed and temperature to achieve the desired thermosetting of the fabric
    4. Mahlo Ecomat – this device allows to control the humidity of the air at the extraction
