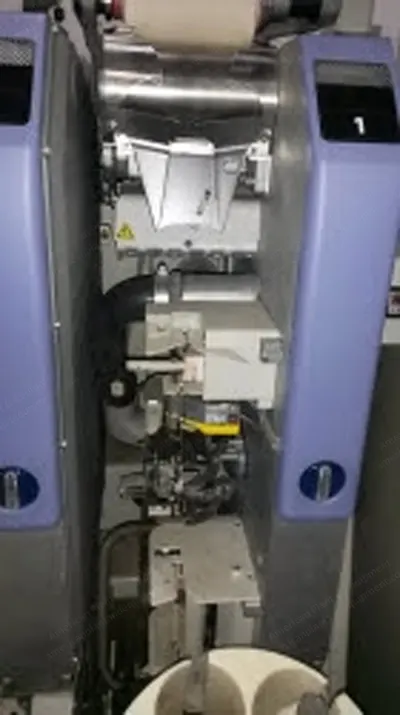

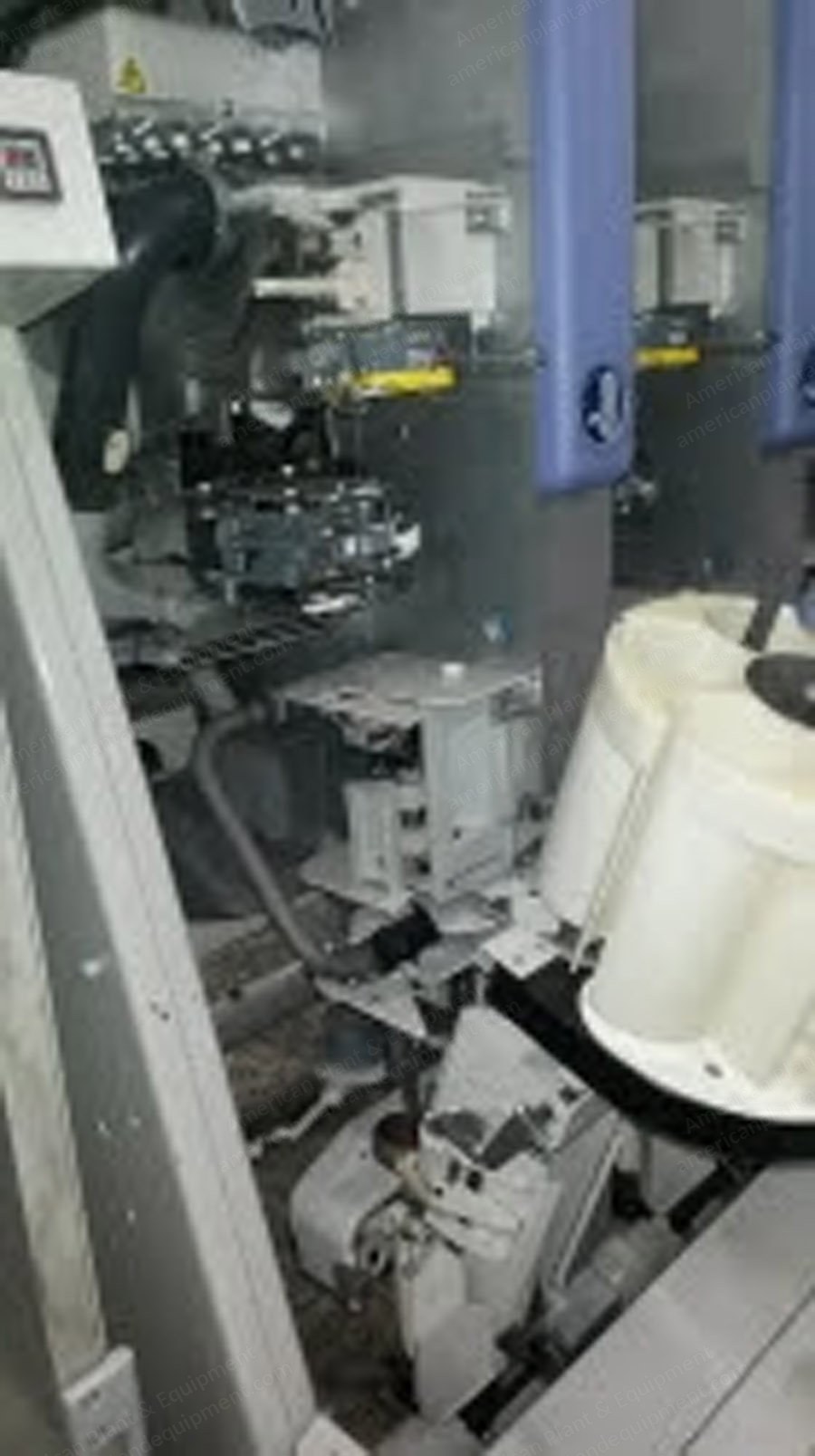

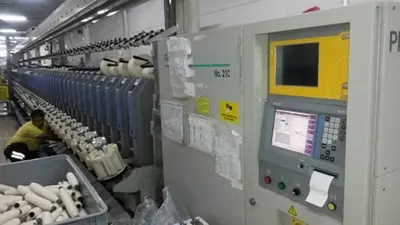

Murata, 21C, 2011, Automatic Cone Winder, 60 Heads, Pitch 152mm, Loepfe Yarn Master Zenit Clearers

Murata, 21C, 2011, Automatic Cone Winder, 60 Heads, Pitch 152mm, Loepfe Yarn Master Zenit Clearers

Description

  1. Overview
    1. Automatic cone winder Murata 21 C
    2. 60 heads
    3. 2 machines main unit DX
    4. 2 machines main unit SX
    5. Manual feeding by spools
  2. Specifications
    1. Feeding tube height: 260 mm, internal diameter: 22/24 mm
    2. Drum: 1.5 or 2.5 turns
    3. Pitch: 6 in (152 mm)
    4. Conicity: 4°20’
    5. Splicer: G8Z/G2Z
    6. Electronic clearers: Loepfe Yarn Master Zenit C
    7. Waxing device
    8. 1 trolley for automatic doffing
    9. Single magazine cone reserve per any head
    10. Lighting
    11. Trolley blower (aspirator blowing) with discharge on the main unit
    12. Year built: 2011
    13. Voltage: 380/3 – 50 Hz
