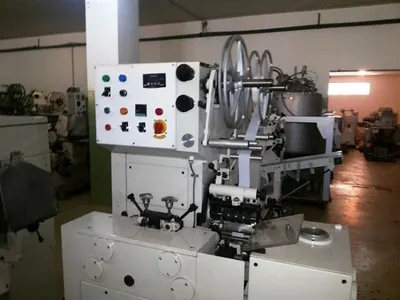

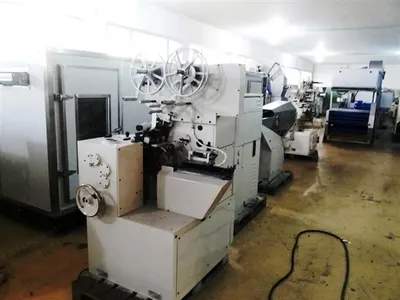

Pactec Nagema, EW10, 1990, Cut and Vienna Fold Bonbon Wrapper, 16 to 18mm Width, 300/min

Pactec Nagema, EW10, 1990, Cut and Vienna Fold Bonbon Wrapper, 16 to 18mm Width, 300/min

Description

  1. Overview
    1. Year: 1990
    2. Speed: 300 products per minute

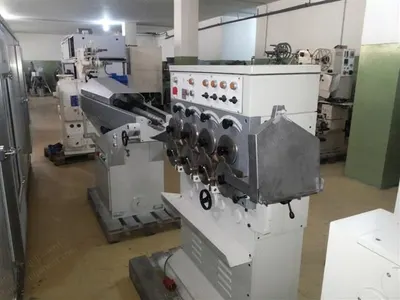

    3. Includes batch roller and rope sizer
    4. Refurbished
  2. Product Dimensions
    1. Length: 25 to 35 mm
    2. Width: 16 to 18 mm
    3. Height: 10 to 15 mm

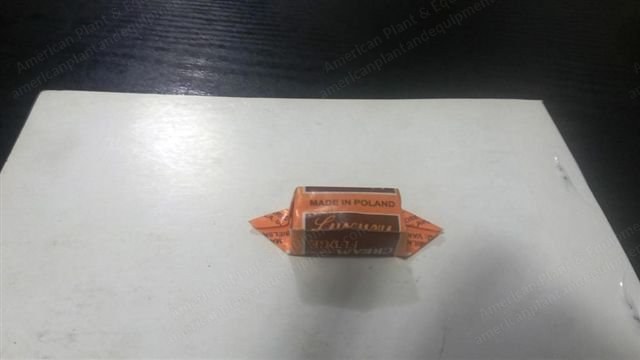

  3. Products
    1. Fudge
    2. Krowki
  4. Output
    1. Up to 300 products per minute
  5. Special Features
    1. PLC control
    2. Saving of wrapping material by “no product-no paper” device
    3. Machine stop in case of accumulation of mass rope or wrapping material troubles

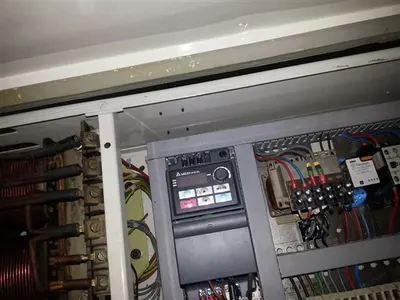

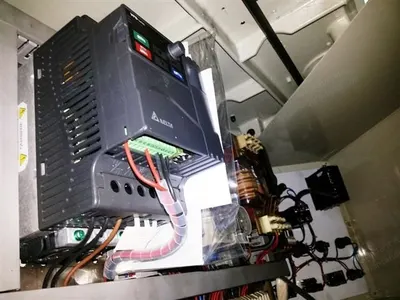

    4. All electrical and electronic elements are integrated in the machine
    5. Excellent accessibility for operation, maintenance and cleaning purposes
    6. System of protection: IP 54
  6. Options
    1. Photo-electric print registration
    2. Second wrapping material reel for outer wrapper
    3. Original Vienna-fruit-fold
  7. Wrapping Material
    1. Wax paper
    2. Chromo paper
    3. Aluminium / paper – coated
  8. Material Dimensions
    1. Reel diameter: up to 350 mm
    2. Reel width: up to 120 mm
    3. Core diameter: 75 mm
  9. Utilities
    1. Connected load: 4 kVA
  10. Measurements
    1. Length: 2800 mm (with feeding conveyor)
    2. Width: 1450 mm
    3. Height: 1810 mm
    4. Weight: 1300 kg
  11. Combination
    1. Masses of particularly short consistency will have to be fed manually
    2. The machine could also be combined with a rope sizing machine
