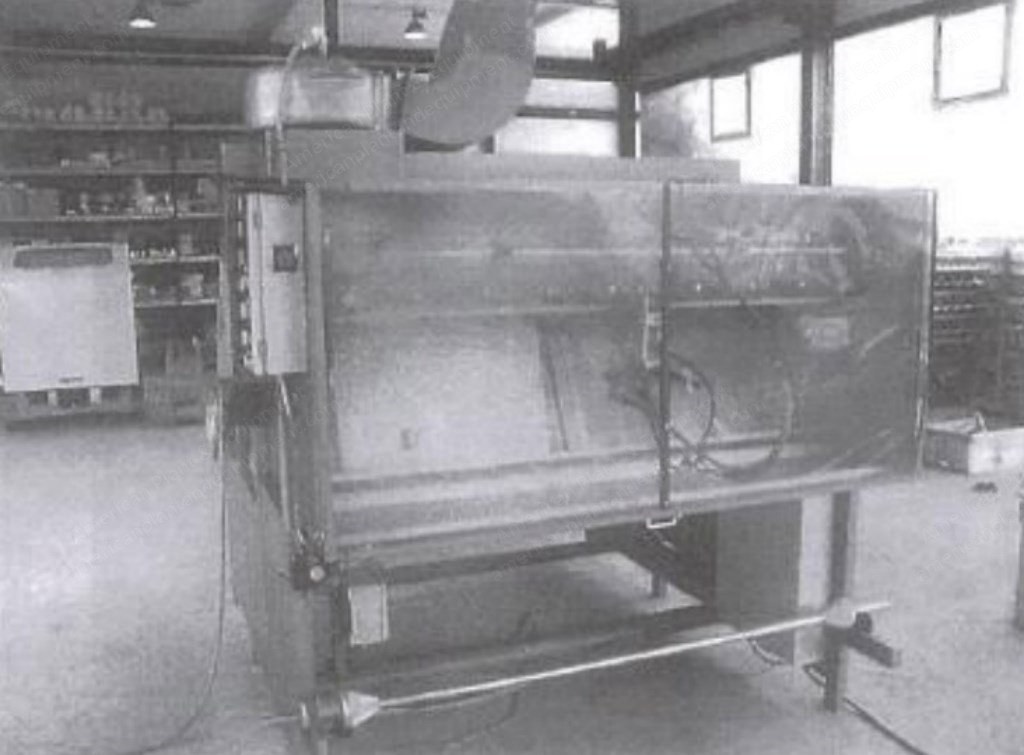

Machtex, ES3 - 150, 1994, Spraycoating and Laminating Machine, Working Width 1600mm, 6 Spray Nozzles

Machtex, ES3 - 150, 1994, Spraycoating and Laminating Machine, Working Width 1600mm, 6 Spray Nozzles

Description

  1. Overview
    1. For continuous operation with diagonally (nearly vertically) spray cabin
    2. Calendar with adjustable pressure
    3. Six spray nozzles for pu solvent glue
    4. Adjustable movement and velocity of spray nozzles
    5. Pressure tank for glue with pipes
    6. Complete with two unwinding and laminating – winding station
    7. Equipped with adjustable clutch
    8. Deduction pipe above spray cabin and fan
    9. Atex eex ii at1 – explosion protection
    10. With upgrades: spreader roller, banana roller, deflection roller etc
    11. Additional seven spray nozzles with separate glue supply
    12. Ca. 20 operation hours
  2. Specifications
    1. Working width: 1600 mm
    2. Machine length: 2250 mm
    3. Machine width: 2000 mm
    4. Machine height: 2200 mm
    5. Compressed air: 2.000 ltr/min, 7 bar (for 2 spraying nozzles)
    6. Electric: 415 v, 50 hz, 3 phase
    7. Motors (220 / 380 v)
  3. Condition
    1. Approximately 20 operation hours
  4. Included
    1. Two unwinding stations
    2. Laminating – winding station
    3. Spreader roller
    4. Banana roller
    5. Deflection roller
    6. Additional seven spray nozzles with separate glue supply
    1. Not specified
