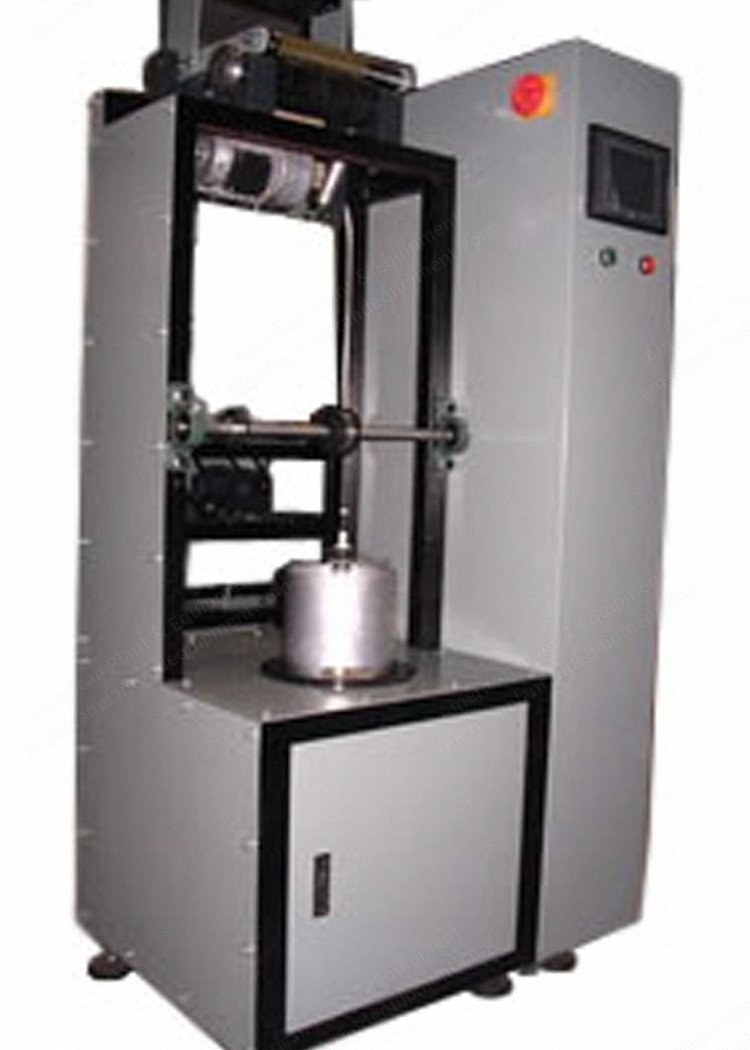

NovaStar, WN110, Lab Doubling and Twisting Machine, 1 Spindle, 8000 RPM, 800x600x1700mm (New)

NovaStar, WN110, Lab Doubling and Twisting Machine, 1 Spindle, 8000 RPM, 800x600x1700mm

Description

  1. Overview
    1. Lab doubling and twisting machine
    2. Model: WN110
    3. Used to twist two plied yarns into one folded yarn through ring spinning and twisting
    4. Ideal system for teaching, researching, etc.
  2. Features
    1. Uses touch screen as man-machine interface
    2. Input technical parameters and show machine run state by touch screen
    3. Mini-type design
    4. Easy to clean, set and maintain
    5. High-efficiency imported frequency converter, PLC and touch screen
  3. Specifications
    1. Control: touch screen + PLC
    2. Spindle number: 1 set
    3. Spindle speed: 8000 rpm
    4. Output speed: 80 m/min
    5. Bobbin size: Φ42 × 170 mm
    6. Grooved drum: Φ82 × 170 mm
    7. Voltage: 220/3 × 380 V AC 50 Hz
    8. Twist range: 120 to 2000 t/m
    9. Power: 360 W
    10. Dimension: 800 × 600 × 1700 mm (L × W × H)
