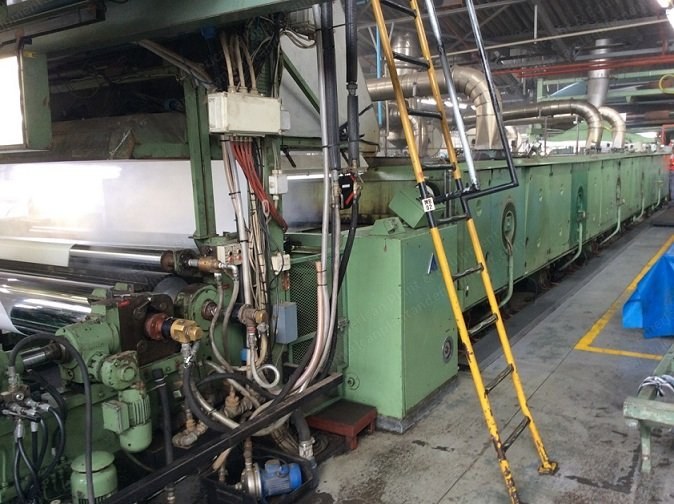

Artos, Direct PVC Coating Line, 1998, 2500mm Finished Width, 3 Coating Stations, Gas Fired

Artos, Direct PVC Coating Line, 1998, 2500mm Finished Width, 3 Coating Stations, Gas Fired

Description

  1. Overview
    1. Artos direct pvc coating line
    2. Year: 1998
    3. Type: Artos 3 station pvc direct coating machine with turnover frame allowing for double sided coating in a single pass
  2. Specifications
    1. Width: 2500mm finished
    2. Speed: 25 m/min on 550g pvc coated tarpaulin
    3. Heating: gas fired, currently lpg but can be set up on natural gas
    4. Face roll width: 3000mm
    5. Working width: 2650mm
    6. Mechanical speed: 30 m/min
    7. Speed regulation range: 10 to 30 m/min
    8. Voltage: 3 phase 400 volt – 50 hz
    9. Control voltage: 110 volt – 50 hz
    10. Adjustable tension on the fabric: 30 to 300 kgt
    11. Heating system: gas
    12. Max temp inside the oven: 220°c max
    13. Cooling and chilled by water
    14. Temp of embossing rollers: 10°c
    15. Product width: 1200mm to 2500mm
  3. Coating Stations

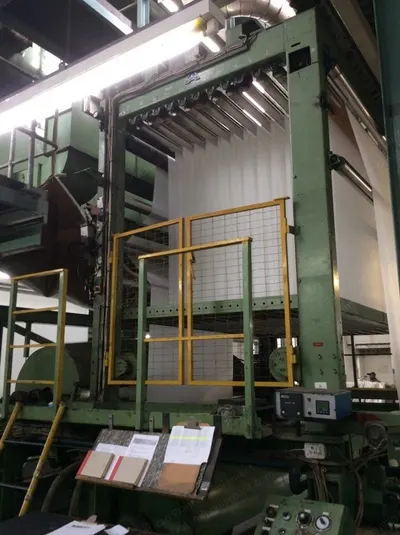

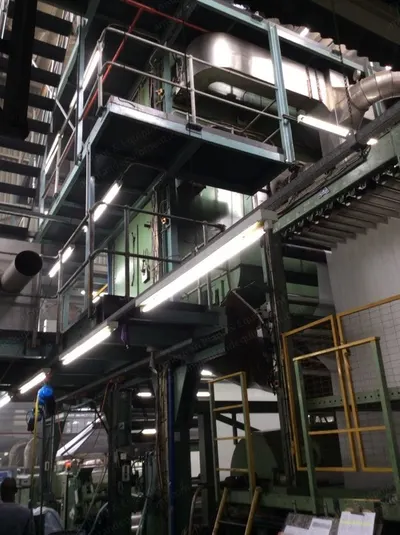

    1. After the first anchor coating station, there is a vertical oven

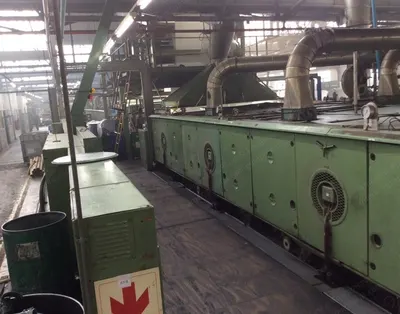

    2. After the second coating station, there is a horizontal stenter oven
    3. After the third coating station, there is another horizontal stenter oven
    4. After the second horizontal oven, the fabric goes through a turn-over frame so that the third coating station can coat the front-side of the fabric, therefore the fabric is completely coated and finished front side and back side when it comes off the machine
  4. Additional Features
    1. The machine does not have a mahlo weft straightener, but it does have a built in weft straightening system at the unwinding station
    2. The machine comes complete with unwinding station and wind-up station to make jumbo rolls (500m – 1000m) depending on the weight of the fabric
  5. Fabric Specifications
    1. Light truck tarpaulins: pvc, fabric 1000d x 1000d, total weight 600 to 1050 g/m², weight tolerance ±15g, density 7 x 7 to 9 x 9 y/cm², tensile strength 2200 x 2200 to 2800 x 2800 n/5cm, tearing strength 250 to 350 n, adhesion 100 n/5cm
    2. Heavy truck tarpaulins: pvc, fabric 2000d x 2000d, total weight 600 to 1050 g/m², weight tolerance ±15g, density 7 x 7 to 9 x 9 y/cm², tensile strength 3400 x 3400 to 5700 x 5700 n/5cm, tearing strength 250 to 500 n, adhesion 100 n/5cm
    3. Light railcar tarpaulins: pvc, fabric 1000d x 1000d, total weight 600 to 1050 g/m², weight tolerance ±15g, density 7 x 7 to 9 x 9 y/cm², tensile strength 2200 x 2200 to 2800 x 2800 n/5cm, tearing strength 250 to 350 n, adhesion 100 n/5cm
    4. Heavy railcar tarpaulins: pvc, fabric 2000d x 2000d, total weight 600 to 1050 g/m², weight tolerance ±15g, density 7 x 7 to 9 x 9 y/cm², tensile strength 3400 x 3400 to 5700 x 5700 n/5cm, tearing strength 250 to 500 n, adhesion 100 n/5cm
    5. Tents: pvc, fabric 1000d x 1000d to 2000d x 2000d, total weight 800 to 1150 g/m², weight tolerance ±15g, density 7 x 7 to 9 x 9 y/cm², tensile strength 1500 x 1500 to 4000 x 4000 n/5cm, tearing strength 120 to 250 n, adhesion 100 n/5cm
    6. Billboards flat type: pvc, fabric 500d x 500d to 1000d x 1000d, total weight 400 to 600 g/m², weight tolerance ±15g, density 7 x 7 to 9 x 9 y/cm², tensile strength 1500 x 1500 to 2800 x 2600 n/5cm, tearing strength 120 to 350 n, adhesion 100 n/5cm
    7. Geomembrane: pvc, fabric 1000d x 1000d to 2000d x 2000d, total weight 750 to 1100 g/m², weight tolerance ±15g, density 6 x 6 to 10 x 10 p y/cm², tensile strength 2500 x 2500 to 6500 x 6500 n/5cm, tearing strength 250 to 800 n, adhesion 100 n/5cm
    8. Inflatable for toys: pvc, fabric 500d x 500d, total weight 400 to 500 g/m², weight tolerance ±15g, density 7 x 8 y/cm², tensile strength 1300 x 1500 n/5cm, tearing strength 200 n, adhesion 100 n/5cm
    9. Light sport inflatable: pvc, fabric 1000d x 1000d, total weight 600 to 1100 g/m², weight tolerance ±15g, density 7 x 7 to 9 x 9 y/cm², tensile strength 2200 x 2200 to 4000 x 4000 n/5cm, tearing strength 250 to 400 n, adhesion 100 n/5cm
    10. Heavy sport inflatable: pvc, fabric 2000d x 2000d, total weight 600 to 1100 g/m², weight tolerance ±15g, density 7 x 7 to 9 x 9 y/cm², tensile strength 2800 x 2800 to 3400 x 3400 n/5cm, tearing strength 250 to 600 n, adhesion 100 n/5cm
    11. Heavy duty inflatable: pvc, fabric 2000d x 2000d, total weight 1100 g/m², weight tolerance ±15g, density 12 x 12 p y/cm², tensile strength 6900 x 6900 n/5cm, tearing strength 1400 n, adhesion 100 n/5cm
    12. Pool: pvc, fabric 1000d x 1000d to 2000d x 2000d, total weight 800 to 1800 g/m², weight tolerance ±15g, density 7 x 7 to 9 x 9 y/cm², tensile strength 1500 x 1500 to 2800 x 2800 n/5cm, tearing strength 150 to 500 n, adhesion 100 n/5cm
