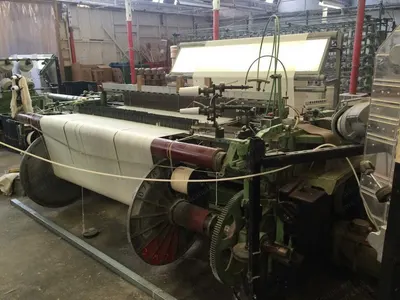

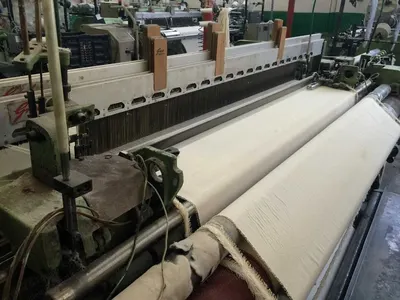

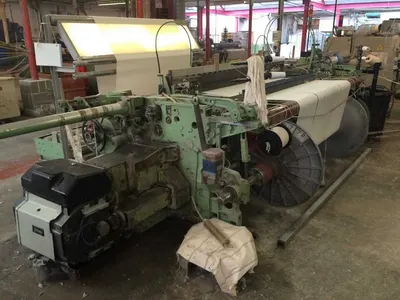

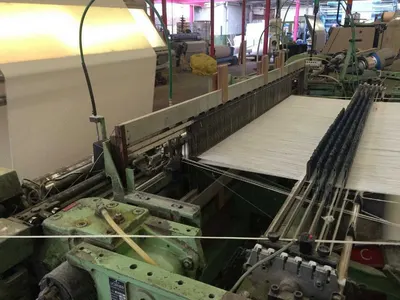

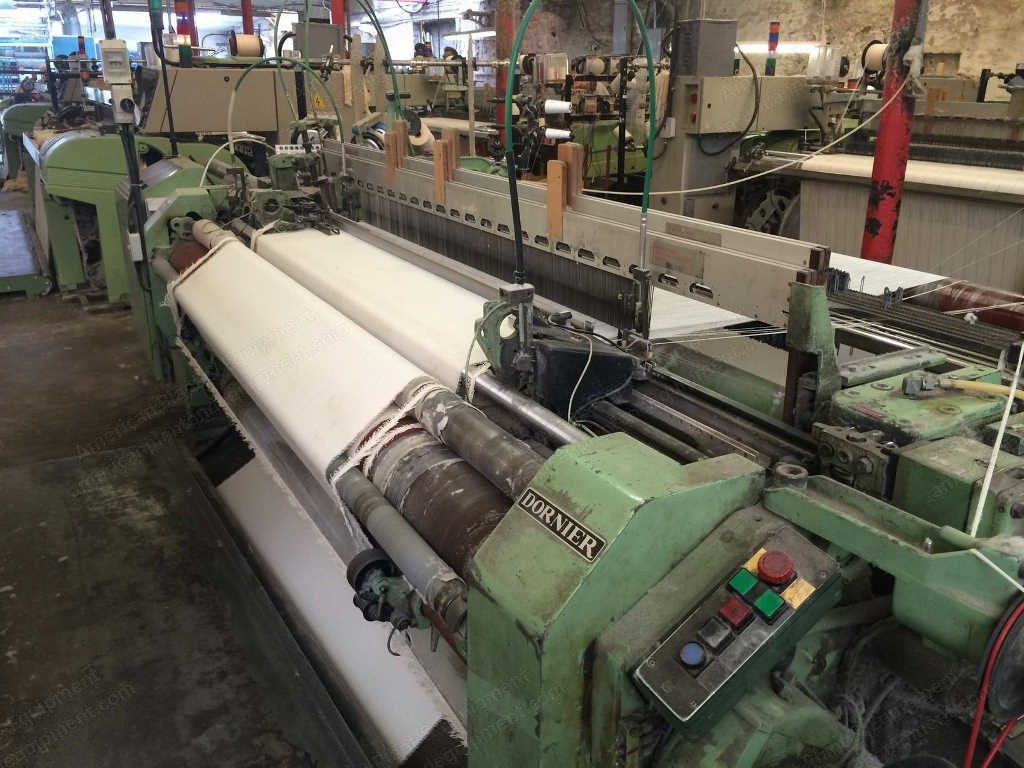

Dornier, HTV4/SD, 1989, Rapier Loom, 2300mm Working Width, 2 Colors, Staubli 2117 Dobby

Dornier, HTV4/SD, 1989, Rapier Loom, 2300mm Working Width, 2 Colors, Staubli 2117 Dobby

Description

  1. Overview
    1. Dornier HTV4/SD loom
    2. Working width: 2300 mm
    3. Year: 1989
    4. Make: Staubli
    5. Type: HTV4/SD
    6. Type of weft insertion: Rapier
    7. Number of weft colors: 2
    8. Number fully working: 2
    9. Accumulators: 2
    10. Make and type: Sirio Robot
    11. Cone stand: 1
    12. Selvedge waste bin: 1
  2. Dobby Specifications

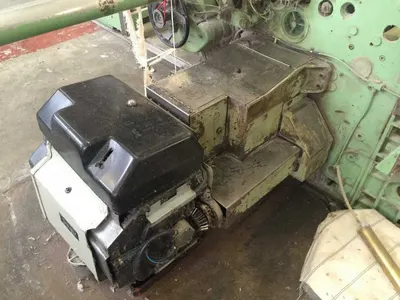

    1. Dobby make and model: Staubli 2117
    2. Maximum possible shafts: 8
    3. Installed levers: 8
    4. Installed undermotions: 8
    5. Frames supplied: 10
    6. Dropper bars: 6
  3. Loom Mechanics
    1. Loom take-up: Mechanical
    2. Loom let-off: Mechanical
    3. Beam set-up: Single warp beam
    4. Number of warp beams: 2
    5. Warp beam flange: 800 mm
    6. Cloth rollers: 1
  4. Condition and Included Items
    1. Spares: None
  5. Machine Dimensions
    1. Width: 2300 mm
    2. Length: 4900 mm
    3. Height: 1200 mm
