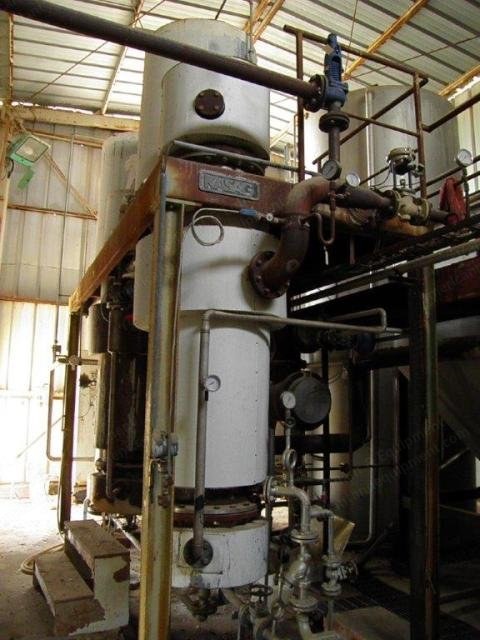

Kasag Caustic Recovery System, 2 Stages, 1000 kg/h Steam Consumption

Kasag Caustic Recovery System, 2 Stages, 1000 kg/h Steam Consumption

Description

  1. Overview
    1. Kasag caustic recovery system
    2. Includes heat exchangers, pumps, and control valves
    3. Merck control system
  2. Specifications
    1. Weak lye input: about 2500 l/h at 5.Be
    2. Strong lye output: about 400 kg/h at 26.Be
    3. Number of stages: 2
    4. Steam consumption: 1000 kg/h at 4 bar
    5. Water consumption (cooling): 9 to 11 m³/h at 70 °C
    6. Electric power for the plant: 12 kW
    7. Electric power for the transfer pump and filter: 3 kW
    8. Water evaporation: about 1.5 to 2 m³/h at approximately 90 °C
  3. Condition
    1. Evaporated water can be recycled for processing
