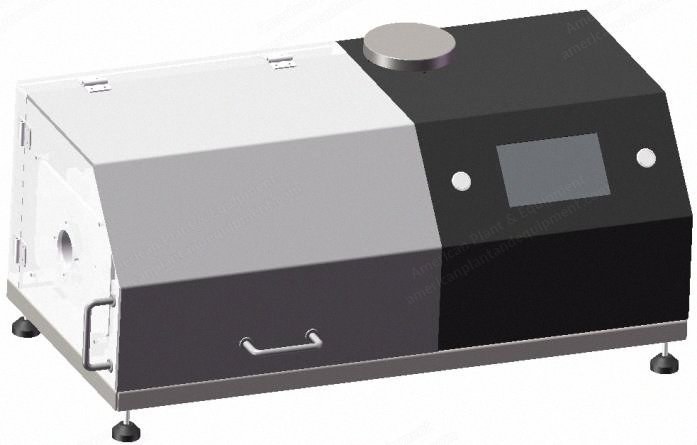

NovaStar, Mask Blood Penetrability Tester, Pressure Range 6-100 KPa

NovaStar, Mask Blood Penetrability Tester, Pressure Range 6-100 KPa

Description

  1. Overview
    1. Used for the resistance of surgical masks to the penetration of synthetic blood under different sample pressures, and also for the determination of the penetration resistance of other coating materials.
    2. Relative standards: GB/T19083, YY 0469, YY/T0691, ISO 22609, ASTM F1862-07, etc.
  2. Instrument Features
    1. Uses air pressure with high pressure control accuracy and available pressure range.
    2. Control system software controls pressure and injection time; after setting the pressure, automatic voltage stabilization is realized.
    3. Nozzle can be adjusted within ±20 mm and can be used for non-standard tests.
    4. All main parts adopt corrosion-resistant parts, allowing long-term operation in high humidity environments.
    5. Equipped with a liquid sputtering collection structure for convenient liquid collection after the test; the test process is clean and tidy.
    6. Test area adopts an enclosed design.
  3. Specifications
    1. Bulk range: adjustable between 280 to 320 mm.
    2. Nozzle size: Ø0.84 mm × 12.7 mm.
    3. Pressure range: 6 kPa to 100 kPa (±0.2 kPa).
    4. Power: AC 220 V ±10%, 50 Hz.
    5. Instrument dimensions: 910 mm × 420 mm × 400 mm (L × W × H).
    6. Weight: approximately 50 kg.
