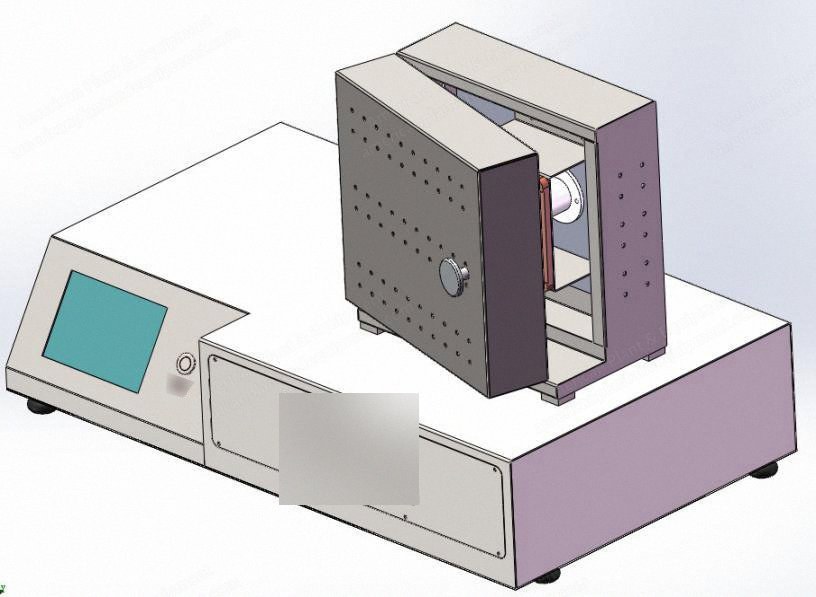

NovaStar, Electrostatic Attenuation Performance Tester, ±5000V, 1-150KV Range (New)

NovaStar, Electrostatic Attenuation Performance Tester, ±5000V, 1-150KV Range

Description

  1. Overview
    1. Scope of appliance: to test the ability of protective clothing materials and non-woven fabrics to eliminate the charge induced to the material surface when grounding after the action of ±5000V voltage, that is, to measure the electrostatic attenuation time from the peak voltage to 10%.
    2. Relative standard: GB 19082-2009 technical requirements for disposable protective clothing for medical use.
    3. GB/T33728-2017 evaluation of electrostatic properties of textiles, electrostatic attenuation method GJB2605-1996 specification for heat-sealing flexible anti-static barrier materials.
    4. YY/T0867-2011 test method for electrostatic attenuation time of non-manufactured cloth.
    5. IST40.2 (01) standard test method for electrostatic decay of nonwoven fabrics.
  2. Technical Features
    1. Imported German electrostatic field intensity monitoring system.
    2. Rotating vane-type gold-plated probe head, accuracy +/-5%; no current distortion.
    3. Integrated 1kV to 150kV positive and negative high voltage stable output power supply, safe and convenient.
    4. The instrument is equipped with electrostatic protection net, safe and accurate test.
    5. Control the split structure of the same test area to ensure safety and facilitate the expansion of the environmental warehouse.
    6. The modular circuit design of the instrument can expand the remote-control function.
  3. Specifications
    1. The whole instrument incorporates a four-part module design: ±5000V voltage control module (1kV to 150kV positive and negative high voltage), high voltage discharge module, random test module for attenuation voltage, and static decay time test module.
    2. Measurement range of static voltage value: 0 to ±5kV.
    3. The half-life time range is 0-99.99 hours, with an error of ±0.01 seconds.
    4. The discharge time is adjustable from 0 to 99.99 hours.
    5. Sample size: 89mm × (152±6) mm.
    6. Working power supply: AC220V 50 Hz.
    7. Test box: 352 × 200 × 360.
    8. Weight: about 40kg.
