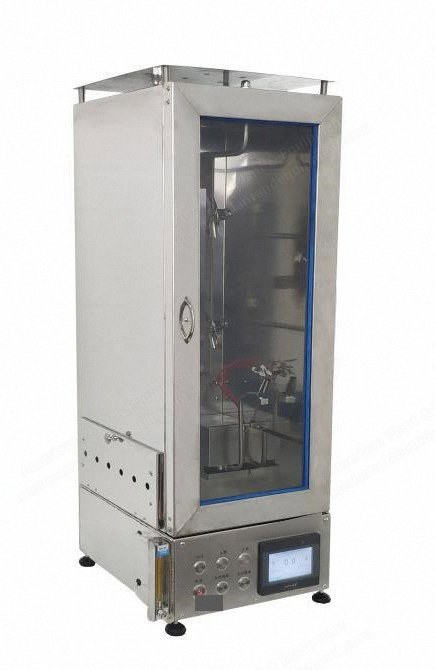

NovaStar, FT100, Flame Resistance Tester of Fabric, AC220V, 500x331x900mm
Scroll to zoom
100%
Description
Overview
Applicable to the determination of the vertical combustion performance of various fabrics such as clothing fabrics, curtain decorative fabrics, tent fabrics, etc.
Specific ignition nozzle and sample holder can be customized to meet various standards.
Relative standards: GB/T5455, GB/T13488/13489, GB/T2408, ISO1210, CFR1615/1616, etc.
Specifications
Continuation timing: 0 to 999.9 s, resolution 0.1 s
Overcast timing: 0 to 999.9 s, resolution 0.1 s
Temperature display in the box: room temperature to 99, resolution 1
Ignition time: 0 to 999 s, digital setting
Ignition inner diameter: 11 mm
Distance from the top of the igniter to the sample: 17 mm; inclination angle 25°
Sample clamp size: outer frame 422 mm × 89 mm, inner frame 356 mm × 51 mm
Dimensions: 500 mm × 331 mm × 900 mm; studio size: 329 mm × 329 mm × 767 mm
Power supply: AC220 V, 50 Hz, 10 W
Weight: 23 kg
