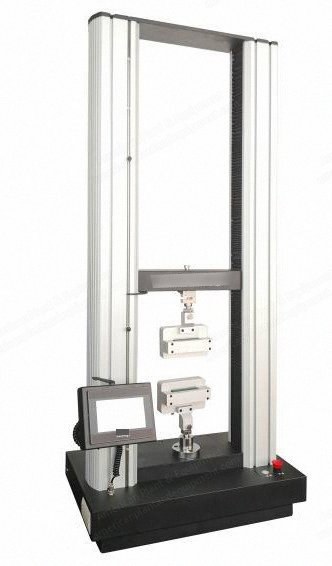

NovaStar, MC104, Electronic Fabric Strength Machine, 5000N Max Load, 1-500 mm/min, 750x450x1550mm (New)

NovaStar, MC104, Electronic Fabric Strength Machine, 5000N Max Load, 1-500 mm/min, 750x450x1550mm

Description

  1. Scope of Appliance
    1. Used for testing the mechanical properties of various textiles such as drawing, tearing, jacking, fixed elongation, fixed load, elasticity, seam slip, stripping, etc.
  2. Relative Standards
    1. GB/T3923.1, FZ/T70006, FZ/T70007, ISO4606, GB/T13772.1/2/3, FZ/T20019, FZ/T01030, ISO9073.3/4, GB8687, FZ/T01085, ISO13934.1/2, ISO13935.1/2, ASTM D5034, ASTM D5035, ASTM D2261, ASTM D4964, ASTM D5587, ASTM D3936, ASTM D1683 (instead 434), JIS L1096, etc.
  3. Technical Data
    1. Working mode: Principle of constant speed elongation (CRE), microcomputer control, touch screen display, support online communication
    2. Sampling rate: 1000 times/second
    3. Load range: 1% to 100% of full scale
    4. Test accuracy: 0.2% or less F.S.
    5. Clamping way: Pneumatic, manual two kinds
    6. Stretching speed: 1 to 500 mm/min
    7. Effective dynamic range: 800 mm
    8. Elongation resolution: 0.01 mm
    9. Longmen width: 400 mm
    10. Power supply: AC220V ±10%, 50 Hz, 750 W
    11. Appearance size: 750 x 450 x 1550 mm
    12. Heavy quantity: 150 kg
  4. Model and Range
    1. Model 50: 500 N
    2. Model 100: 1000 N
    3. Model 250: 2500 N
    4. Model 500: 5000 N
