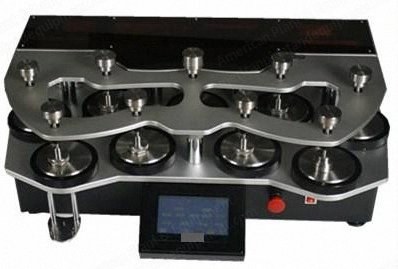

Used to test the wear resistance, abrasion and appearance change (pilling) of textiles and film materials (martindale method).
Related Standards
GB / T21196 (international standard drafting organization), FZ / T20020, GB / T4802.2, GB / T13775, ASTM D4966, ASTM D4970, ASTM D3886, ISO12945.2, ISO12947, JIS L1096, IWSTM196 / TM112 M & S WAIT.
Technical Parameters
Number of stations: 9
Counting range: 0 to 999999 times
Maximum stroke: 60.5 ± 0.5 mm / 24 ± 0.5 mm
Mass of pressurized material:
Weight of clothing sample: 397 ± 2 g
Furniture decoration sample weight: 597 ± 2 g
Stainless steel plate: 260 ± 1 g
Effective friction diameter of grinding block: type A 198 g (3 kpa) friction head ￠ 28.8 -0.084 mm; type B 155 g (1.52 n) friction head ￠ 90 to 0.10 mm
Relative moving speed of gripper and grinding table: 50 ± 2 r / mi (20-70 r / min adjustable)
Mass of loading hammer: 2385 ± 10 g
Dimensions: 885 × 600 × 410 mm
Power supply: AC220V 50 Hz 500 W
Weight: 154 kg
