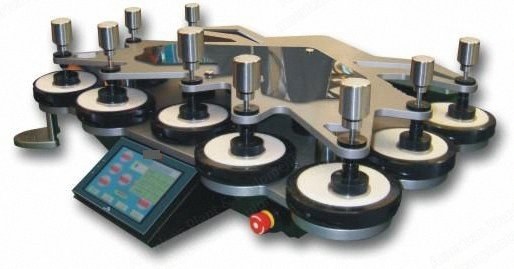

NovaStar, MC108, 9 Stations, 850x580x360mm, Martindale Wearing Tester (New)

NovaStar, MC108, 9 Stations, 850x580x360mm, Martindale Wearing Tester

Description

  1. Overview
    1. Martindale wearing tester model MC108
    2. Reference number: DD-1138
    3. Used to test the wear resistance, abrasion and appearance change (pilling) of textiles and film materials (Martindale method)
    4. Related standards: GB/T21196, FZ/T20020, GB/T4802.2, GB/T13775, ASTM D4966, ASTM D4970, ASTM D3886, ISO12945.2, ISO12947, JIS L1096, IWSTM196/TM112 M & S wait
  2. Technical Parameters
    1. Number of stations: 9
    2. Counting range: 0 to 999999 times
    3. Maximum stroke: 60.5 ± 0.5 mm and 24 ± 0.5 mm
    4. Mass of pressurized material: clothing sample weight 397 ± 2 g, furniture decoration sample hammer 597 ± 2 g, stainless steel plate 260 ± 1 g
    5. Effective friction diameter of grinding block: type A 198 g (3 kPa) friction head ￠ 28.8 -0.084 mm, type B 155 g (1.52 N) friction head ￠ 90 -0.10 mm
    6. Relative moving speed of gripper and grinding table: 50 ± 2 r/min (20-70 r/min adjustable)
    7. Mass of loading hammer: 2385 ± 10 g
    8. Dimensions: 850 × 580 × 360 mm
    9. Power supply: AC220V 50 Hz 500 W
    10. Weight: 110 kg
