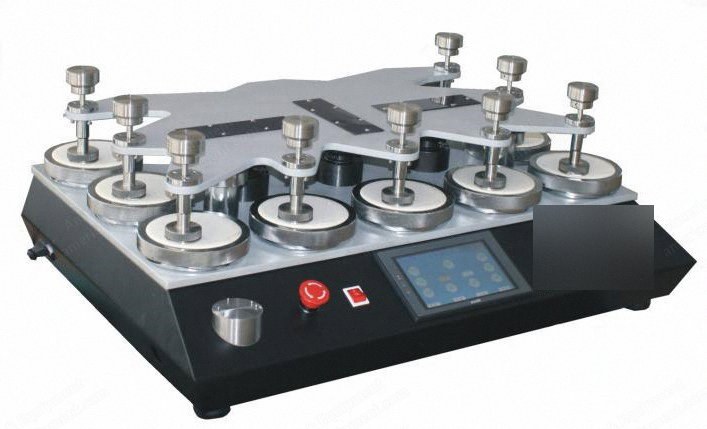

NovaStar, MC109, 9 Stations, 885x600x410mm (New)

NovaStar, MC109, 9 Stations, 885x600x410mm

Description

  1. Overview
    1. Used to test the resistance to wear, abrasion and appearance change (pilling) of textiles and film materials (martindale method).
    2. Related standards: GB / T21196 (international standard drafting unit), FZ / T20020, GB / T4802.2, GB / T13775, ASTM D4966, ASTM D4970, ASTM D3886, ISO12945.2, ISO12947, JIS L1096, IWSTM196 / TM112, M & S, etc.
  2. Technical Parameters
    1. Number of stations: 9
    2. Counting range: 0 to 999999 times
    3. Maximum stroke: 60.5 ± 0.5 mm, 24 ± 0.5 mm
    4. Mass of pressurized material: clothing sample weight 397 ± 2 g, furniture decoration sample weight 597 ± 2 g, stainless steel plate 260 ± 1 g
    5. Effective friction diameter of grinding block: type A 198 g (3 kpa) friction head ￠ 28.8 -0.084 mm, type B 155 g (1.52 n) friction head ￠ 90 -0.10 mm
    6. Relative moving speed of gripper and grinding table: 50 ± 2 r / mi (20-70 r / min adjustable)
    7. Mass of loading hammer: 2385 ± 10 g
    8. Dimensions: 885 × 600 × 410 mm
    9. Power supply: AC220V 50Hz 500W
    10. Weight: 150 kg
