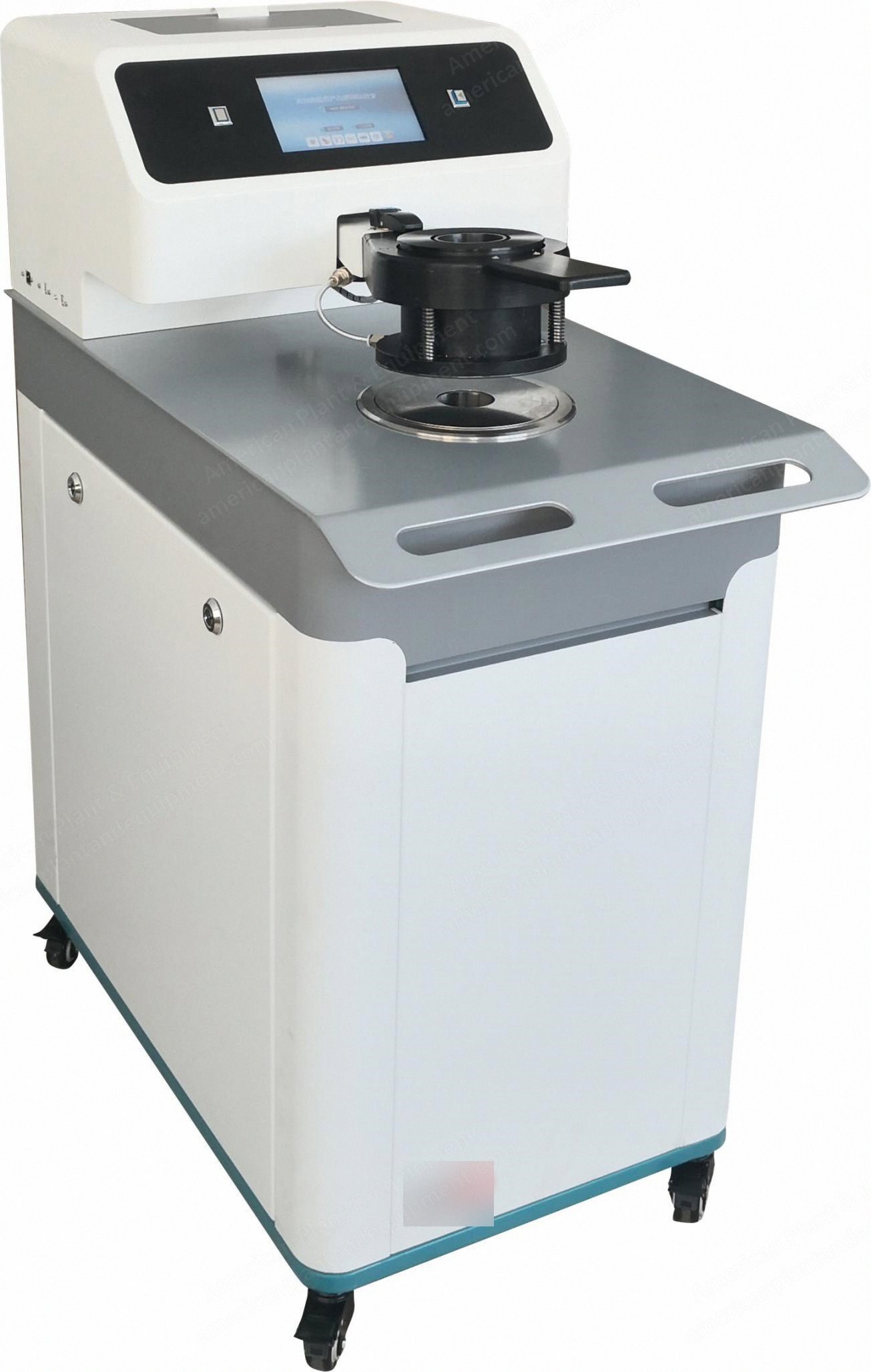

NovaStar, GL111, Fabric Air Permeability Tester, Touch Screen, USB Interface (New)

NovaStar, GL111, Fabric Air Permeability Tester, Touch Screen, USB Interface

Description

  1. Scope Of Application
    1. Used for a variety of textile fabrics, including industrial fabrics, non-woven fabrics, coated fabrics and other industrial papers (air filter paper, cement bag paper, industrial filter paper), leather, plastics, and chemicals that require controlled air permeability product breathability test.
  2. Related Standards
    1. Gb / t5453, afnor g07-iii, astm d737, astm d3574, bs 5636, din 53887, edana 1401, en iso 7231, en iso 9237, jis l1096-a, tappi t251, etc.
  3. Technical Parameters
    1. Sample pressure difference range: 0.1 to 4000.0 pa
    2. Measurable air permeability: 0.01 to 31150.00 mm / s
    3. Measurement accuracy: ≤ ± (1.75 + 0.02 fs)%
    4. Measurable fabric thickness: ≤12 mm
    5. Test area: standard configuration 20 cm2; φ70 mm (≈38.5 cm2) matching: 5 cm2; 50 cm2; 100 cm2
    6. Measurement unit: mm / s, cfm, cm3 / cm2 / s, l / m2 / s, l / dm2 / min, m3 / m2 / min, etc.
    7. Print report: print test report by micro printer or online computer
    8. Data processing: convenient historical data retrieval, data statistics and report printing and exporting
    9. Test time for conventional stable samples: 3-12 s (different time for different samples)
    10. Power supply: ac220v ± 10% 50 hz 1 kw
    11. Weight: 100 kg
    12. Shape: 810 mm × 400 mm × 1080 mm (l × w × h)
