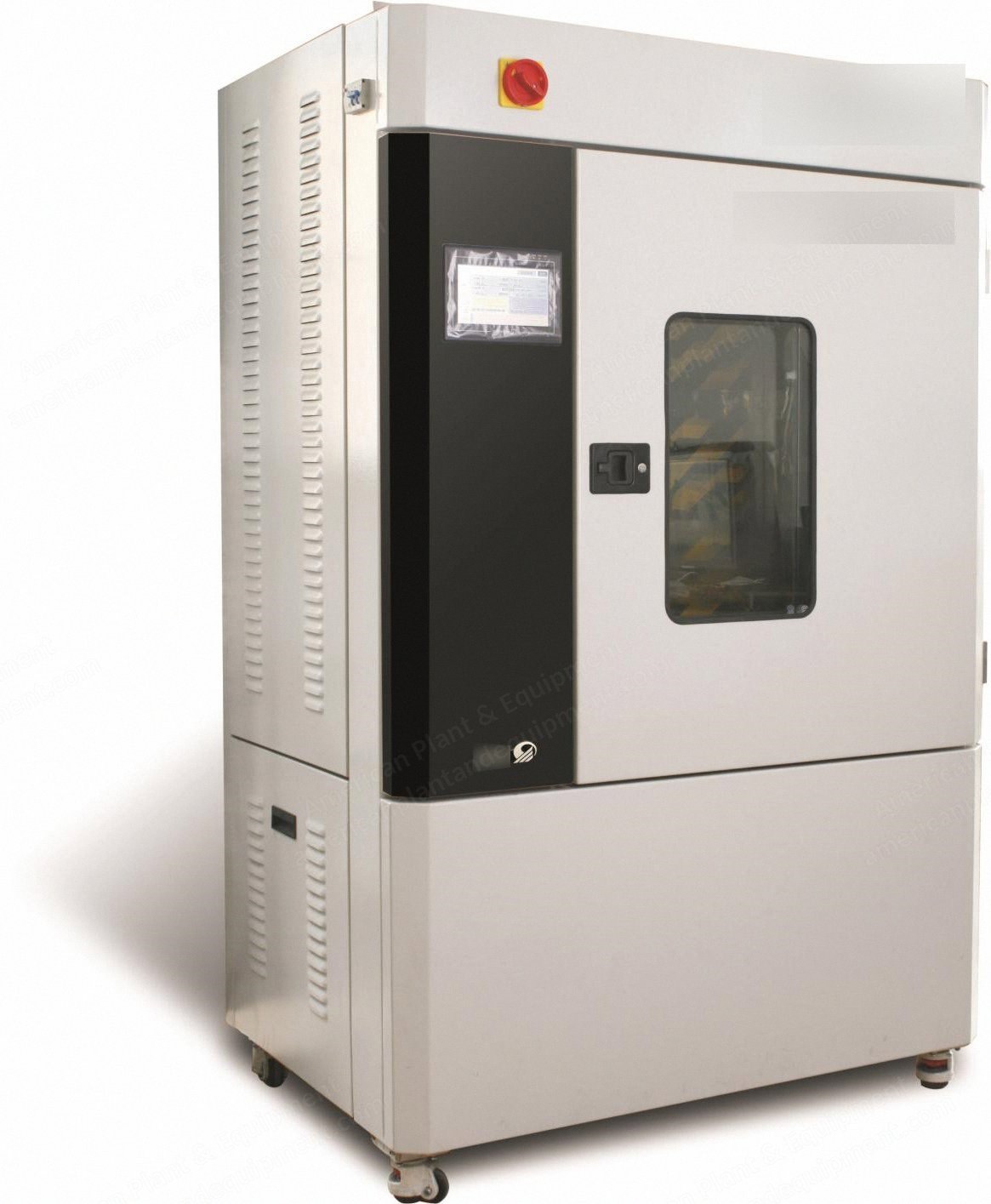

Used to determine the moisture permeability of various fabrics, including moisture-permeable coating fabrics, clothing nonwovens such as batting, space cotton, and sports fabrics.
Related standards: GB/T 12704, ASTME90-00, ASTME96, JIS L1099A, BS7209, JIS L1099B, customized.
Instrument Characteristics
Turntable test cup holder.
Three-layer test cup holder, suitable for large-scale testing.
Three experimental areas with independent air ducts, constant temperature and humidity.
Independent calibration and adjustment of wind speed in three experimental areas.
Microcomputer control with menu operation and color touch screen.
Imported high-precision temperature and humidity sensor with auxiliary digital adjustment technology, temperature and humidity signal output, high accuracy.
Technical Parameters
Temperature range: 15 to 55 °C, accuracy ± 0.1 °C, resolution 0.01 °C.
Humidity range: 30 to 95%, accuracy ± 2%, resolution 0.01%.
Cooling method: air cooling.
Humidification capacity of test chamber: ≥ 300 ml/h.
Test time: 1 to 999 h 59 min.
Circulating steam flow speed: 0.1 m/s to 3 m/s, resolution 0.01 m/s.
Number of permeable cups: 24 (national standard), optional for American standard.
Power supply: AC480V ± 10%, 60 Hz, 4 kW.
Dimensions: 1180 × 820 × 1850 mm (L × W × H).
