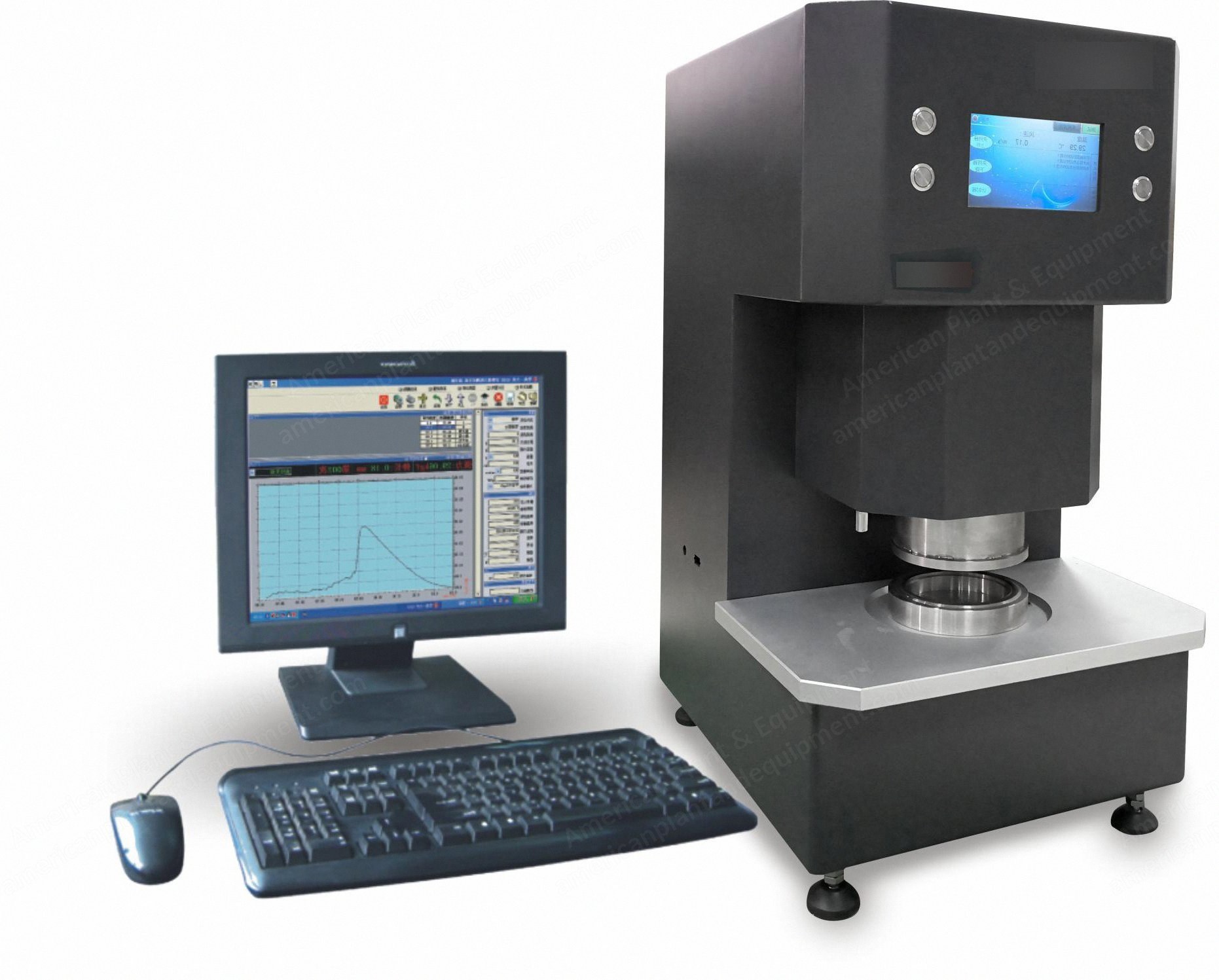

NovaStar, GL116, Test Range 2kPa-200kPa, Sample Chuck Area 100cm², 490x600x825mm (New)

NovaStar, GL116, Test Range 2kPa-200kPa, Sample Chuck Area 100cm², 490x600x825mm

Description

  1. Overview
    1. Used to measure the water resistance of various fabrics (such as canvas, coated cloth, tent cloth, tarpaulin cloth, rainproof clothing cloth and geotextile material) which have been treated with water resistance.
    2. Related standards: GB/T4744 (national drafting unit), FZ/T01004 (lead drafting unit), AATCC127, JIS L1099, DIN 53886, JIS L1092, BS7209 and so on.
  2. Instrument Characteristics
    1. Gas pressurization, uniform pressurization speed, fast response, not limited by movement range.
    2. Industrial camera imaging, automatic identification of water droplets, automatic grade evaluation assistance system for test results.
    3. Pneumatic clamping of samples, convenient, fast, stable and consistent.
    4. The free-angle enhanced lighting system makes it easy for users to observe the test status of the sample.
    5. There is a constant pressure early warning function to reduce the time of trial care.
  3. Technical Parameters
    1. Test range: 2 kpa to 200 kpa.
    2. Sample pressing speed: 1 to 100 kpa/min.
    3. Sample chuck area: 100 cm².
    4. Sample clamping method: pneumatic clamping.
    5. Working mode: direct boost method, constant pressure timing method, constant pressure timing method.
    6. Industrial camera imaging, automatic identification of water droplets.
    7. Test accuracy: 2%.
    8. Resolution: 1 digit after the decimal point.
    9. Response time: < 0.2 s.
    10. Testing unit: pa, kpa, mmh2o, mmhg.
    11. Test time: 1 s to 6000 s.
    12. Ambient temperature: 0 to 50 °C.
    13. Working medium: tertiary water, purified water.
    14. Communication interface: rs232, 115200 bps.
    15. Power supply: ac220v ± 10v, 100 w.
    16. Dimensions: 490 (l) × 600 (w) × 825 (h) mm.
    17. Weight: about 110 kg.
