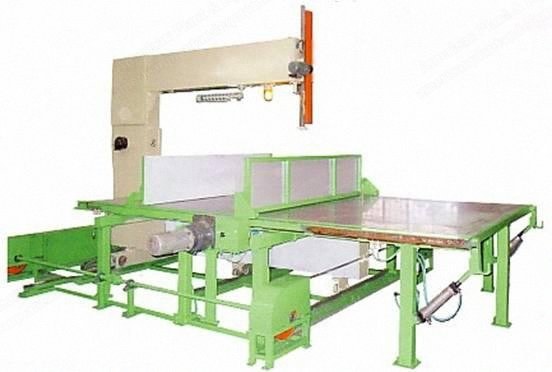

Description Overview Inventory number: E-3329 Automatic vertical foam cutting machine Model FN113 Movable carriage and fixed worktable Foam is placed between the baffles Movable cutting carriage reciprocates by the metal blade Frequency inverter for automatic controls High automatization level, exact cutting, safe operation Specifications Blade length: 9720 mm Available cutting stroke: 2200 mm Baffle stroke: 2050 mm Cutting thickness range: 3 to mm Total power: 6 kW Available cutting height: 1100 mm Baffle treading speed: 0 to 10 m/min Carriage moving speed: 0 to 20 m/min Inner worktable size: w2150 mm x l2240 mm Outer worktable size: w2150 mm x l2440 mm Floor space requirements max: l3.6 m x w5.7 m x h2.7 m
