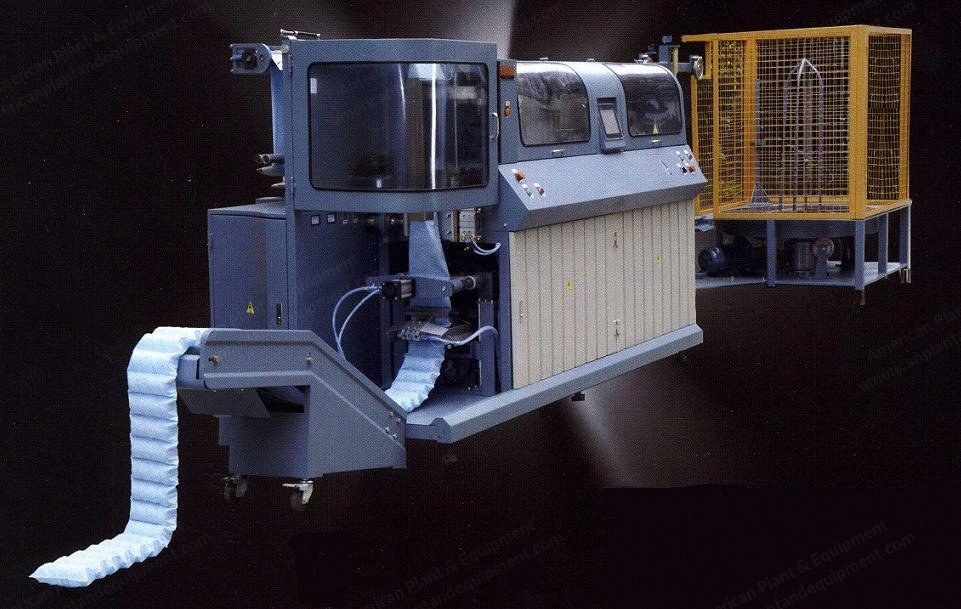

Description Overview Inventory number: E-4178 Pocket coil machine High cost effectiveness High stability, low malfunction rate, low rejection rate Ce-conforming, international standard components Elective bottom seal or dorsal seal Design And Operation Compact design; electro-mechanical conveyor controlled by servo for accurate motions Intelligent sensors check malfunctions continuously and display corresponding alarm on the him One operator can run several sets of SB114 alone Unique patented spring conveyor design increases productivity and efficiency Operator user-friendly non-woven joint device saves time and non-woven material Automatic cutter for pocket springs can be selected as an additional part Ultrasonic horn made of titanium, durable and firm Low and easy maintenance Easy to operate with short training period Specifications Type of spring: barrel/cylindrical Fabric material: 50 to 100 g/m² Fabric roll diameter: max 600 mm Power supply: approx 3φ 380 v 50/60 hz 4.8 kva, input fuse 63 a Air consumption: approx 0.30 m³/h at 0.8 mpa Performance: 60 springs/minute Working temperature: +5 °c to +45 °c Weight: approx 2260 kg Included Pictures available
