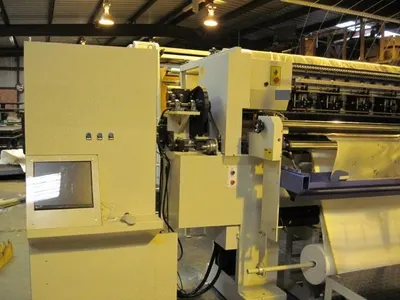

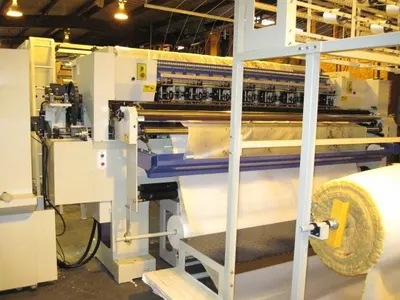

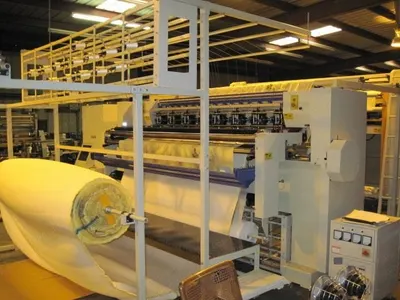

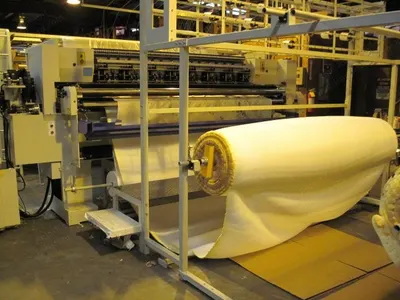

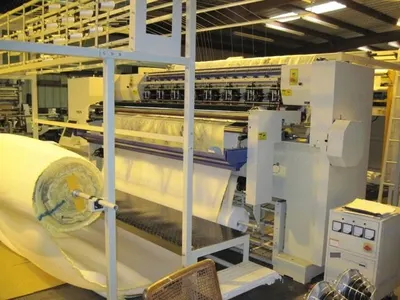

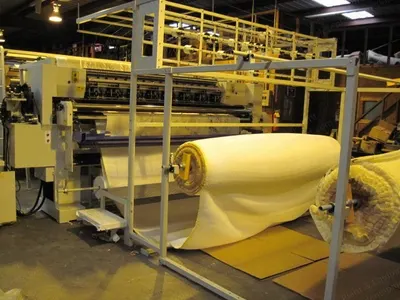

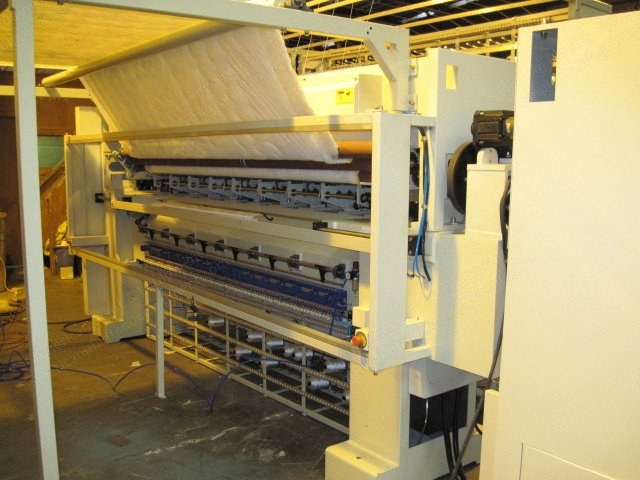

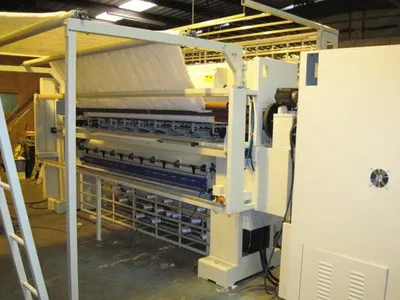

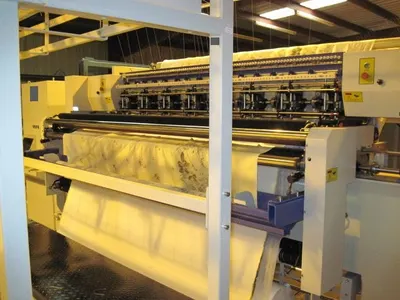

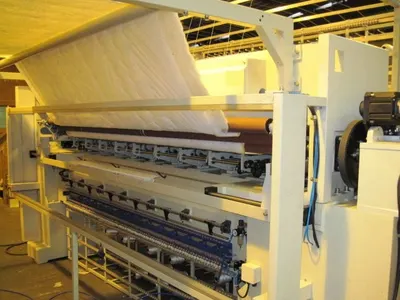

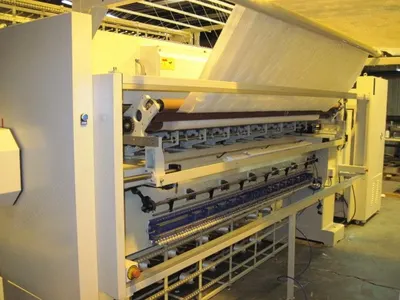

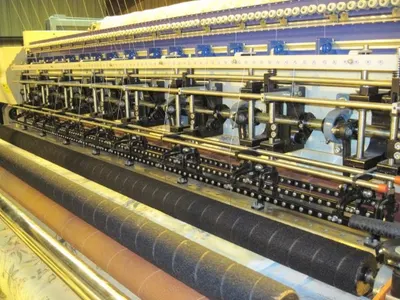

For 360°, 180° patterns, continuous or tack and jump
Applicable for quilting thick and special materials up to 80 mm (3.14)
Features high running speed, low vibration, high rigidity, low noise
Approximately one ton weight of machine base
Specifications
Dimensions (L x W x H): 4715 x 1200 x 1925 mm
Width of quilting material: 2450 mm (96)

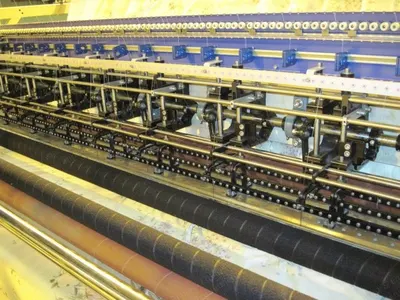

Space between needle rows: 1 x 3 x 6 in
Space between needles: 25.4 mm (one inch)
X-axis movement distance: 430 mm (16.9)
Thickness of quilting: up to 80 mm (3.14)
Length of step: 3-6
Speed of production: up to 2000 meters per hour
Type of needle: 24/180
Speed of main shaft: 200 to 98 rpm
Total power: 7 kW
X motor: 1.5 kW; Y motor: 2 kW; main shaft motor: 5.5 kW
Control And Operation
Automatic stop motion on the upper thread and the bottom thread
Automatic needle-lifting
Computerized speed adjustment
Computerized control system to ensure precision quilting (reduces excessive parameter adjustment and pattern modification)
CAD drawing method to ensure precise patterns and ease of operation (Windows 98 operating system)
Specially developed functions of pattern-combining and multi-span quilting to enable quilting different patterns throughout the length of the mattresses
Safety And Included Equipment
Improved safety protection covers and emergency switches

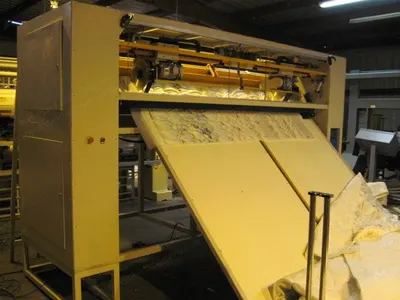

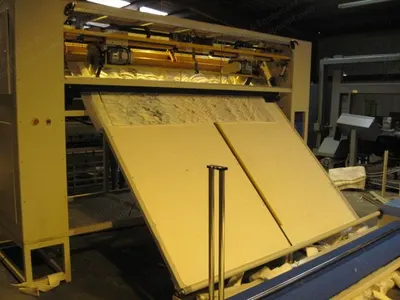

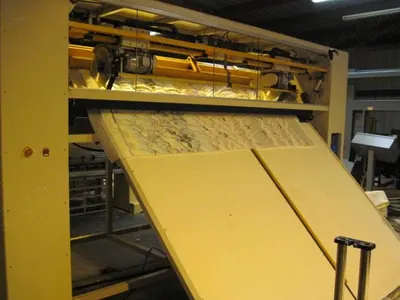

One combined panel cutter - border cutter and winder
