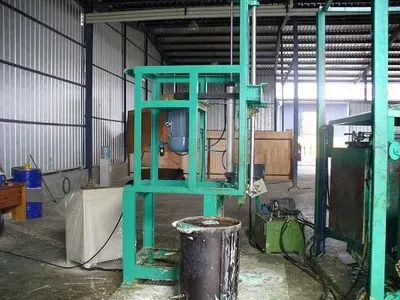

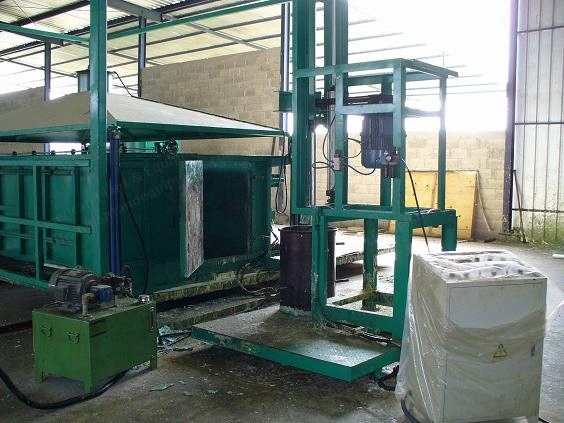

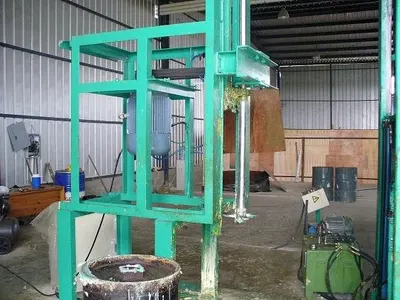

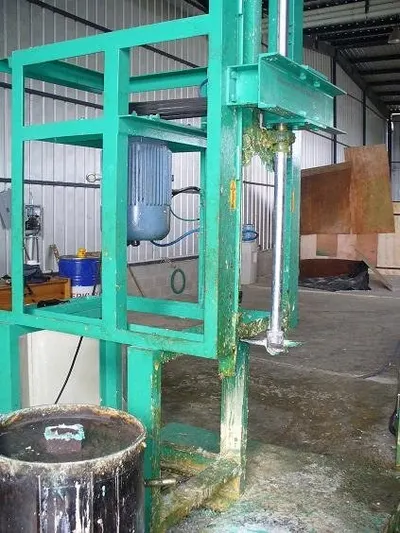

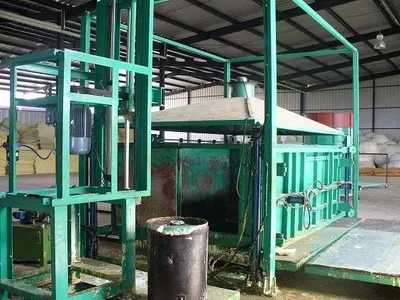

Description Manual Foaming Machine Output: 180 kgs Mixing speed: 0 to 2800 r/min Power: 15 kW Weight: 850 kgs Foaming buckets (diameter): 500 and 550 External dimensions: 1380 mm long x 940 mm wide x 3050 mm tall Foam Making Machine (Mold) Foam block forming machine With automatic hydraulic box lifting by 4 hydraulic cylinders Maximum dimensions of foam bun: 3050 length x 2050 width x 1200 mm height Total floorspace dimensions of machine: 10000 mm length x 4000 mm width x 3700 mm height Bun dimensions are adjustable Smallest bun size: 2550 mm length x 1550 mm width x 1200 mm height Largest bun size: 3050 mm length x 2050 width x 1200 mm height Manual adjustment of foam block dimensions Automatic lifting of mold by hydraulic system When the 4 side walls and the hood (fume exhaust hood) move up, the bun exits the machine The hood is attached to the mold and moves up together with the mold walls After the bun is formed, the mold raises up so you can then move the cart (on rails) and slide the other cart in place Oil can be sprayed on the mold walls to prevent foam from adhering to the walls 2 carts are included and they slide on rails (live and loaded) Fits in a 20 ft container Peeler Foam peeler Cutting size: 2000 mm x 2150 mm diameter Cutting thickness: 2 - 25 mm Cutter band total length: 8640 mm Turning speed: 35 m - 30 m/min Power: 4.69 kW Machine weight: 1800 kg Machine external size: w 1650 x l 4750 x h 1678 mm Grinding Machine Foam grinder (crushing) machine Breaking speed: 100 - 200 kg/hour Breaking particulate min: 3 mm - 20 mm Motor power: 22 kW Screen: 3 pcs (8 mm - 18 mm - 30 mm) Fan: 4 kW Machine weight: 1500 kg Machine size: w 1100 mm x l 2900 mm x h 1000 mm Round Block Mold To feed peeler machine Bun size: 1600 mm x 2200 mm tall Quantity: 2 Horizontal Round Block Boring Machine Full set of spare parts estimated needed for 1 year Full set of mechanical and electrical diagrams Additional Information Plant block production: 24 to 40 blocks per 8 hr shift Floorspace requirements: 6000 sq ft for machinery (raw material and finished product not included in this figure)
