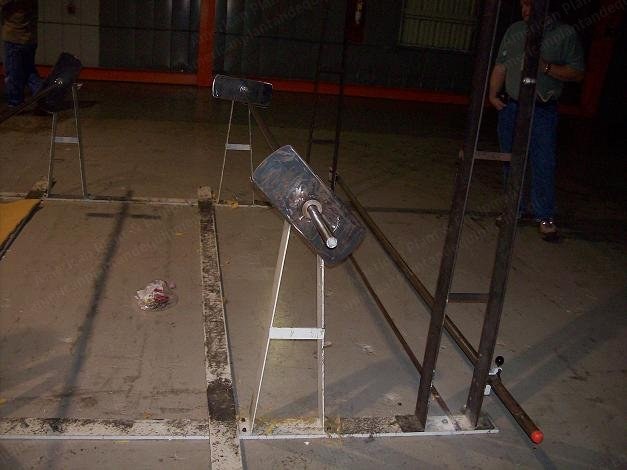

Folded Fabric Opening Line, 1500mm Entry, 3000mm Exit, Undoubling and Winding Machine

Description

Overview
1. Inventory number: E-6708
2. Folded fabric opening line 1500 mm x 3000 mm (undoubling and winding machine)
3. 1500 mm entry
4. 3000 mm exit
Roll Unwinding Section

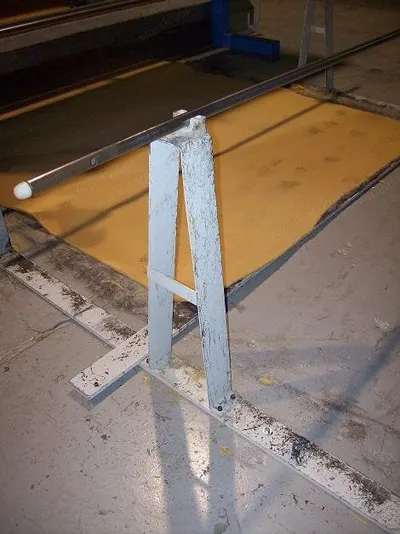

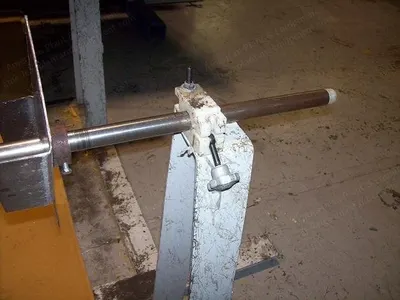

1. Single roll unwinder for 1500 mm width
2. Roll weight capacity: 80 lbs
3. Roll outside diameter: 9 in
4. Core diameter: 2 in

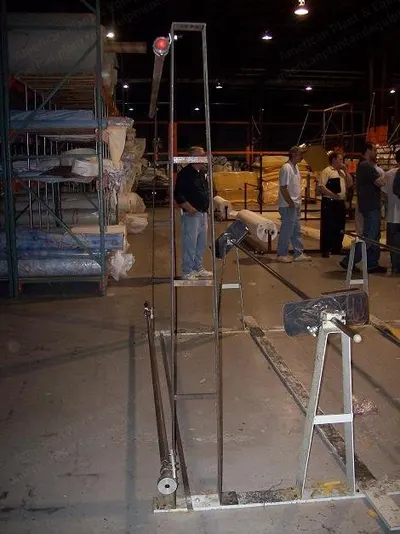

Skying (Fabric) Lifting Section
1. Undoubling or unfolding section
2. Spreading and fabric opening section ("V")
3. Heavy duty framework
Sewing Station
1. Mounted or stand enabling it to travel sideways
Scray/Accumulating Section
1. Up to 200 yard capacity
Fabric Width Aligning Section
1. Earnhardt Leimer pneumatically activated edge guiders
2. Rigid steel frame mounting
Stationary Roll Winding Section
1. 2 steel roll surface winding section with rubber covered rolls
2. 3 hp gear motor
3. Final roll weight capacity: 300 lbs
4. Final roll outside diameter: 26 in (2 in to 3 in core)
5. Surface speed up to 100 yards per minute
Additional Information
1. Pictures and drawings available

Capacity	Up to 200 yard capacity scray, 100 yards per minute surface speed
Roll Unwind Section	Single roll unwinder 1500mm width, max roll weight 80 lbs, max OD 9 inch, core 2 inch
Sewing Station	Mounted or stand enabling sideways travel
Skying Section	Undoubling or unfolding section with spreading and fabric opening V section
Winding Section	2 steel roll surface winding section rubber covered rolls, 3 HP gear motor, max roll weight 300 lbs, max OD 26 inch

Dimensions	1500mm entry width, 3000mm exit width
