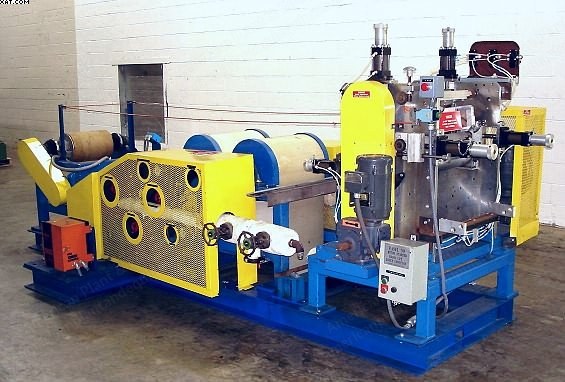

Coating Line, 14" Working Width, 3 Hot Cans, Takeup Winder

Coating Line, 14" Working Width, 3 Hot Cans, Takeup Winder

Description

  1. Overview
    1. Inventory number: E-8075
    2. Coating line for sale
    3. Approximately 14" working width
  2. Coater Section
    1. Coater with 16" wide rolls
    2. (1) 6" diameter top chrome roll
    3. (1) 8" diameter bottom roll
    4. (1) 8" diameter rubber over steel nip roll
    5. Pond feed / flooded nip
    6. Micro-adjustment for knife
    7. Pneumatic controls for coating dam
    8. Metering roll
    9. Backing roll
    10. 3/4 hp motor, e-stop
  3. Hot Can Stack
    1. (3) 18" wide x 16" diameter cans
    2. Temp gauges to 300 deg f
    3. Dayton 1 hp motor
    4. Sm-cyclo gearbox
    5. Fincor ac speed controls
  4. Takeup Winder
    1. Safety chucks and tidland shafts
    2. Currently set up for 2" shaft x 16" wide x 10" tubes but other sizes might be available
    3. 3 hp us gearmotor 230/460v
  5. Condition
    1. Line appears in very good condition
