Menzel, Tornado, 1987, 3400mm Roller Width, Double Roll, 100m/min, 1900mm Winding Diameter

Description

Overview
1. Inventory number: E-8418
2. Menzel winder
3. Year: 1987
4. Double roll winder suitable for continuous production
Specifications
1. Roller width: 3400 mm
2. Speed: max. 100 m/min
3. Winding diameter: 1800 mm to 1900 mm

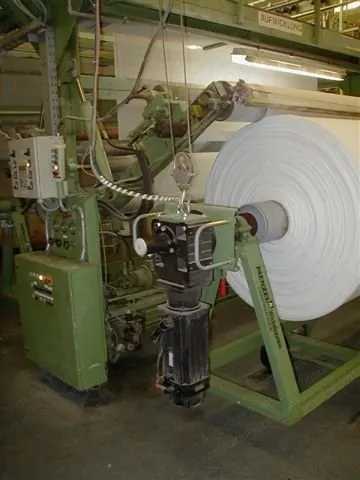

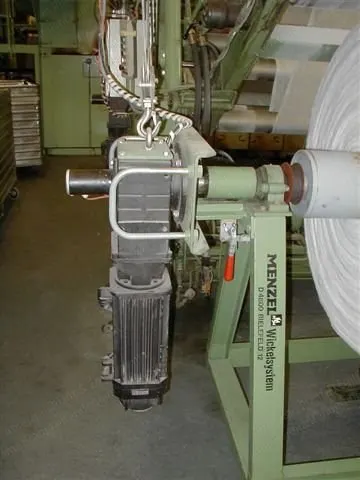

4. Circumferential winder and centre winder (centre wind drive upgraded)
Operation

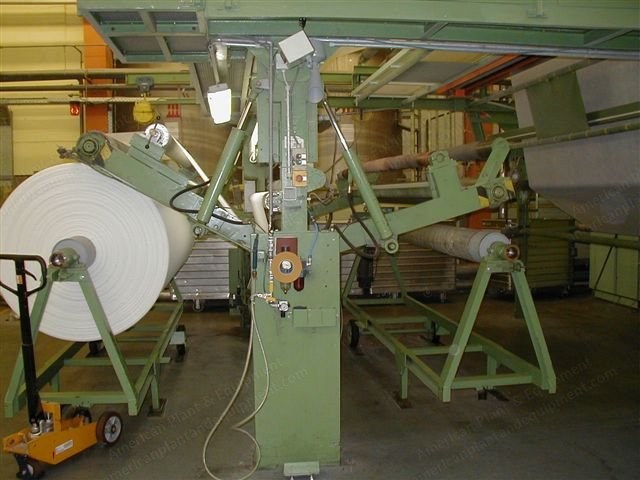

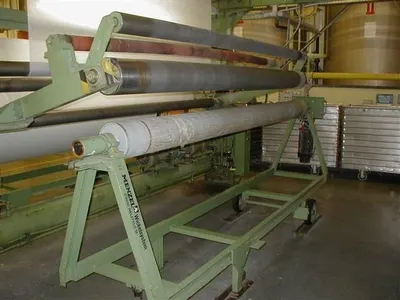

1. Rolls up on A-frames (A-frames do not belong to the machine)
2. While the first roll is wound to the requested diameter and the worker finishes the roll (taping etc.), the machine frame can be turned to continue rewinding on a second A-frame
3. While the machine is winding on the second A-frame, the A-frame of the first roller site can be removed and exchanged by the next empty A-frame
4. Production does not need to be stopped for roll change
Condition
1. Pictures available

Capacity	100 m/min
Features	Continuous production, center wind drive upgraded
Type	Double roll circumferential and centre winder

Dimensions	3400mm roller width
