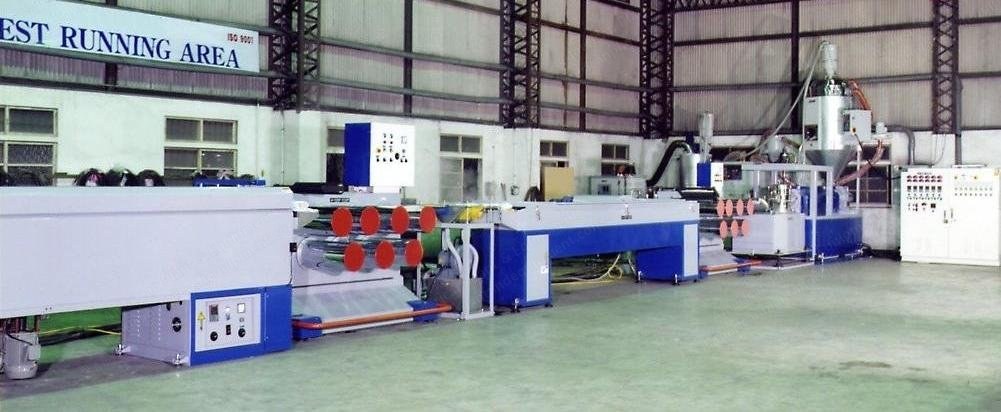

Kung Hsing, Polyester Zipper Monofilament Making Line, 180 kg/hr Extrusion Output, 85mm Screw Diameter

Kung Hsing, Polyester Zipper Monofilament Making Line, 180 kg/hr Extrusion Output, 85mm Screw Diameter

Description

  1. Overview
    1. Inventory number: E-8850
    2. Polyester zipper monofilament making line
    3. Material to be used: polyester
    4. Diameter of filament: 0.3 - 1.2 mm diameter
    5. Extrusion output: 180 kg/hr
    6. Product output: 120 – 150 kg/hr (according to mono size)
  2. Extruder
    1. Screw diameter: 85 mm diameter
    2. Screw L/D: 30:1
    3. Cylinder cooling blower: 1/2 hp blower x 4
    4. Driving motor: 40 hp AC motor with Fuji inverter control
    5. Heater capacity: 35 kW
  3. Die
    1. Nozzle plate: 6 pcs
    2. Gear pump driving device: 5 hp AC motor with Fuji inverter control
    3. Pressure gauge: 500 kg/cm² x 2 sets (1 set feed back to extruder)
  4. Control Panel
    1. Type: independence type switch board (box)
    2. Auto-thermo control: 7 points
  5. Cooling Device
    1. Type: hot water
    2. Auto-thermo controller: 1 set
    3. Heater capacity: 9 kW
  6. Take-Off Unit A
    1. Driving motor: 15 hp AC motor with synchronized Fuji inverter
    2. Take-off speed: 10 - 40 m/min
    3. Take-off roller: 270 mm diameter x 600 mm L x 7
    4. Press roller: 1 pc
  7. Primary Stretching Device
    1. Type: hot water type
    2. Heater capacity: 20 kW
  8. Take-Off Unit B
    1. Driving motor: 20 hp AC motor with synchronized Fuji inverter
    2. Take-off speed: 35 - 140 m/min
    3. Take-off roller: 270 mm diameter x 600 mm L x 7
    4. Press roller: 1 pc
  9. Secondary Stretching Device
    1. Type: hot air type
    2. Length: 600 mm W x 4500 mm L
    3. Air blower: 2 hp AC motor with inverter control
    4. Heater capacity: 20 kW
    5. Auto-thermo controller: 2 sets
  10. Take-Off Unit C
    1. Driving motor: 20 hp AC motor with synchronized Fuji inverter
    2. Take-off speed: 35 - 140 m/min
    3. Take-off roller: 270 mm diameter x 600 mm L x 7
    4. Press roller: 1 pc
  11. Annealing Device
    1. Quantity: 2 sets
    2. Type: hot air type
    3. Length: 600 mm W x 3000 mm L
    4. Heater capacity: 16 kW
    5. Auto-thermo controller: 1 set
  12. Take-Off Unit D
    1. Driving motor: 15 hp AC motor with synchronized Fuji inverter
    2. Take-off speed: 35 - 140 m/min
    3. Take-off roller: 270 mm diameter x 600 mm L x 7
    4. Press roller: 1 pc
  13. Winding Machine
    1. Type: single side
    2. Number of spindles: 57
    3. Winding motor: 10 kg/cm x 57
    4. Traverse motor: 3 hp hydraulic power unit
  14. Accessories
    1. Auto hopper loader: 1 set
    2. Auto dryer: 100 kgs x 1, 200 kgs x 1
    3. Standard spare parts: 1 set
  15. Polyester Crystallizer Dryer
    1. Driving motor: 20 hp
    2. Heater capacity: 35 kW
    3. Size of tank: 2000 (L) x 1200 (W) x 1500 (H)
    4. Capacity: 1500 kg
    5. Operation time: 2.5 - 3 hr / once
    6. Limited warranty: one year
