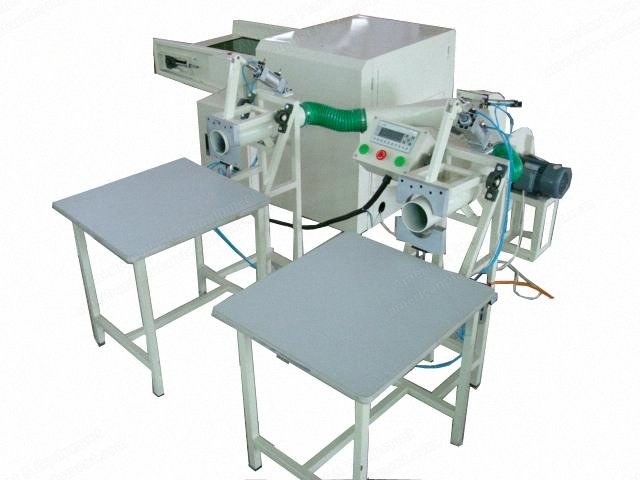

NovaStar, PC135, Computerized Pillow Filling Machine, 120kg/hour Capacity, 8.45kw, 2 Working Tables (New)

NovaStar, PC135, Computerized Pillow Filling Machine, 120kg/hour Capacity, 8.45kw, 2 Working Tables

Description

  1. Overview
    1. Inventory number: E-9099
    2. Computerized pillow filling machine
    3. Composed of one fiber opening machine, one fan and two blowers
    4. One big opening cylinder and seven small rollers with metallic self-lock wire clothing
    5. The fiber can be opened for more than 98% and not be damaged
    6. The two blowers can be handled by only one operator with simple operation
    7. The filling weight can be controlled basically via time flow
  2. Specifications
    1. Dimensions: 3300 x 3200 x 1020 mm
    2. Power: 8.45 kW
    3. Filling capacity: approx. 120 kg/hour (265 lbs)
    4. Fiber opening rate: 200 to 250 kg/hour (440 to 550 lbs)
    5. Weight: 840 kg (1850 lbs)
    6. Suitable material is 2 or 3 dimensional hollow conjugate siliconized polyester fiber shorter than 100 mm (4 inches)
  3. Electrical
    1. As per customer's specifications
  4. Control System
    1. PLC control system
  5. Included Components
    1. Fiber opener
    2. Fan
    3. 2 working tables
