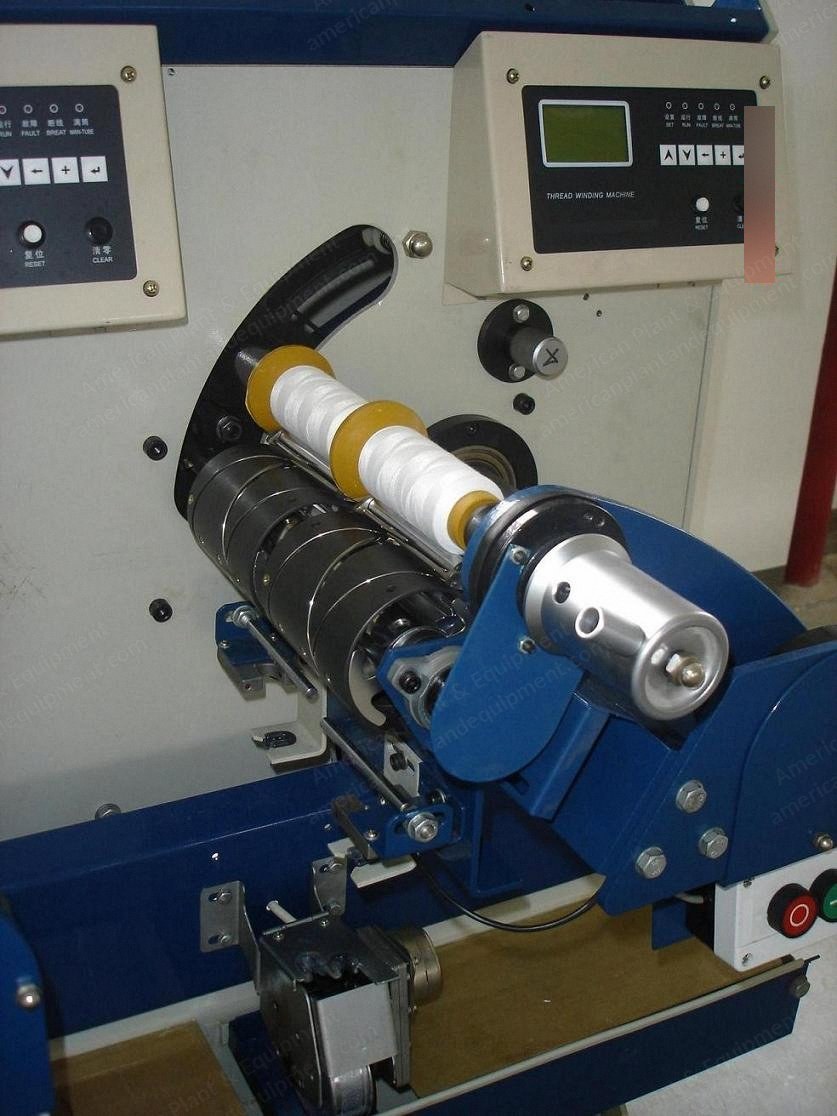

NovaStar, WN117, King Spool Winding Machine, 4 Winding Positions, 210mm Traverse, 1000m/min (New)

NovaStar, WN117, King Spool Winding Machine, 4 Winding Positions, 210mm Traverse, 1000m/min

Description

  1. Overview
    1. Inventory number: E-9114
    2. King spool winding machine for sale
    3. Model: WN117
    4. For winding king spools
    5. 4 winding positions
  2. Specifications
    1. Winding traverse: 210 mm traverse
    2. Maximum winding speed: 1000 m/min
    3. Average winding speed: 900 m/min
    4. Output: 216,000 meter/hour
    5. Constant thread winding speed
    6. Type of thread winding: super hard process abrasion-resistant steel
    7. Finished weight of yarn: 1 kg
  3. Control and Sensors
    1. Center PLC control
    2. PLC winding speed adjustment
    3. Measure thread length: precision length sensor plus PLC
    4. Yarn breaking sensor: electric touchless
    5. Motor brake: yarn breaking electric motor with quick stop brake
    6. Oil wheel adjust system: precision step-motor multi-range
    7. Auto track oil wheel: PLC control oil wheel with tracking yarn winding speed
    8. Rotary tension device: electric
  4. Bobbin Dimensions
    1. 210 mm (8.25 inch) traverse
    2. 25 mm (1 inch) tube shaft diameter
    3. 110 mm (4.3 inch) base diameter
  5. Additional Information

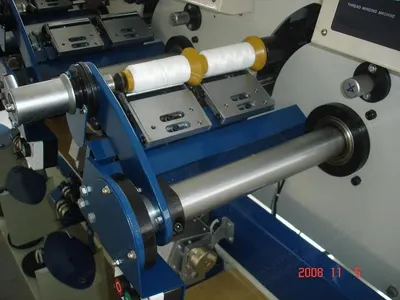

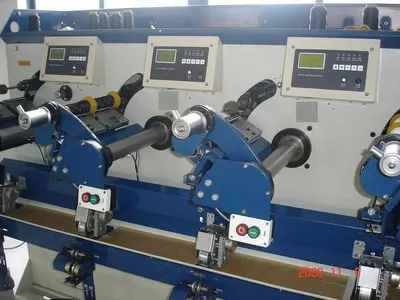

    1. Pictures available
