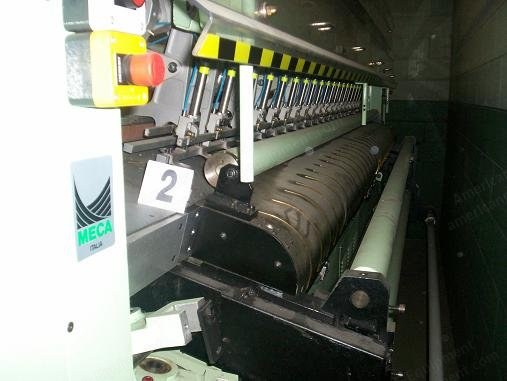

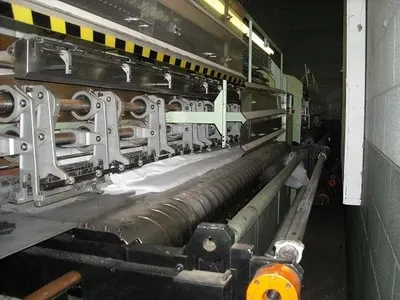

Meca, Scacco SK 115/A3, 1999, 2900mm Working Width, 3 Needle Bars, Lockstitch

Meca, Scacco SK 115/A3, 1999, 2900mm Working Width, 3 Needle Bars, Lockstitch

Description

  1. Overview
    1. Inventory number: E-9144

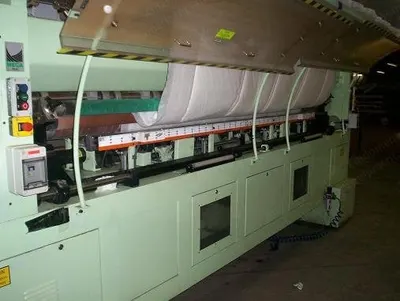

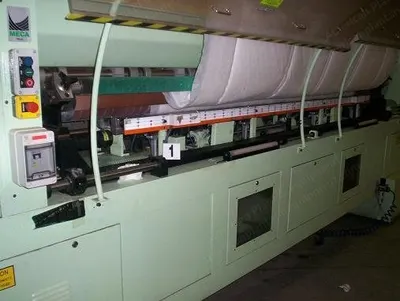

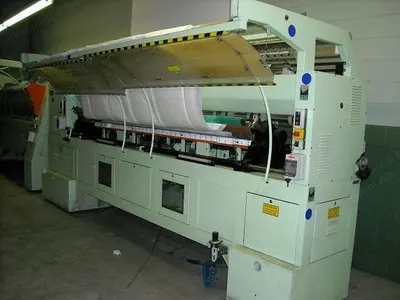

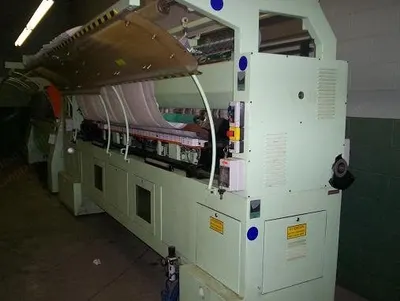

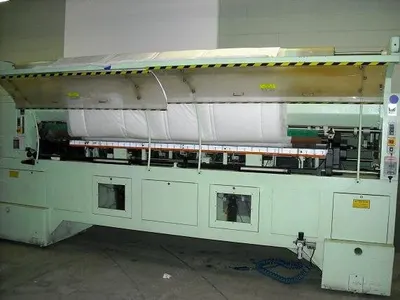

    2. Meca multi-needle quilting machine
    3. Model: Scacco SK 115/A3
    4. Year: 1999
  2. Specifications
    1. Working width: 2900 mm (114)
    2. Maximum width of fabric: 3000 mm (120)
    3. Actual width of the bars: 116 in (2946 mm)

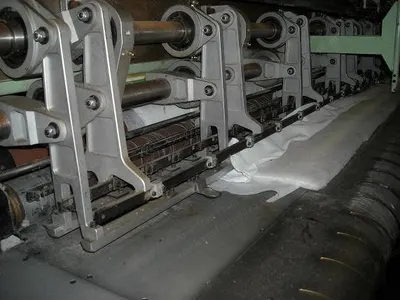

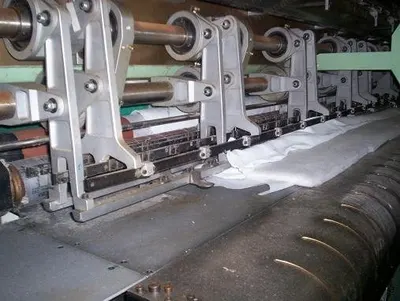

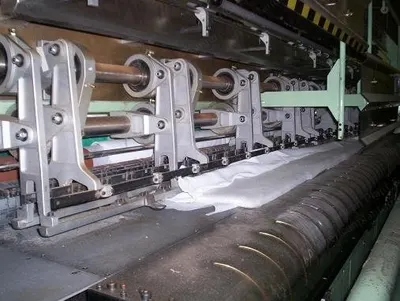

    4. 3 needle bars, spaced 76.2 mm (3)
    5. Lockstitch
    6. Overall dimensions: 5800 mm length, 5000 mm width, 2700 mm height (19 ft x 16.4 ft x 106 in tall)
    7. Weight: 5100 kg
    8. 220 V / 60 Hz / 3-phase
    9. 6-bar air pressure needed
  3. Included Components
    1. Electrical equipment
    2. Main drive electronic

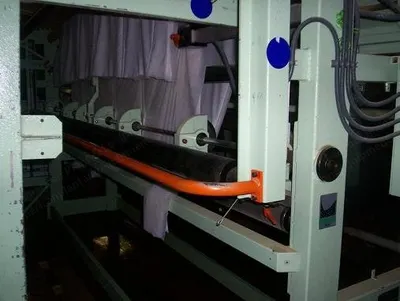

    3. Conveying system

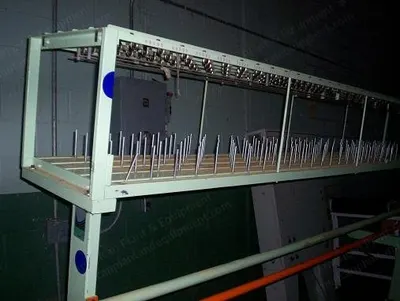

    4. Creel for reels
    5. 200 needles
    6. 80 giant rotating hooks (round bobbins 30 mm diameter x 10 mm wide)

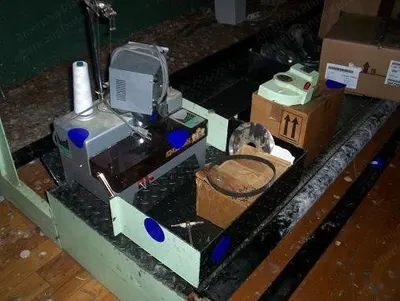

    7. Set of tools
    8. 40 pneumatic thread
    9. Jumping system

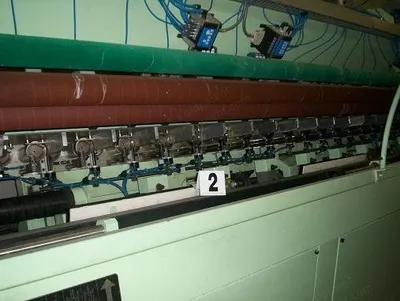

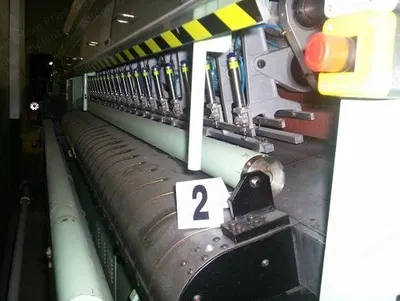

    10. 20 air cylinders on the first bar
  4. Additional Machine

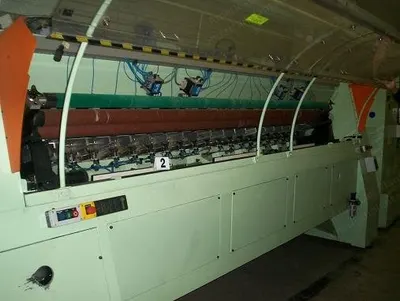

    1. Second machine same as above but does not have the air cylinder on the first bar
    2. Also 3-bar
    3. Now quilting straight
