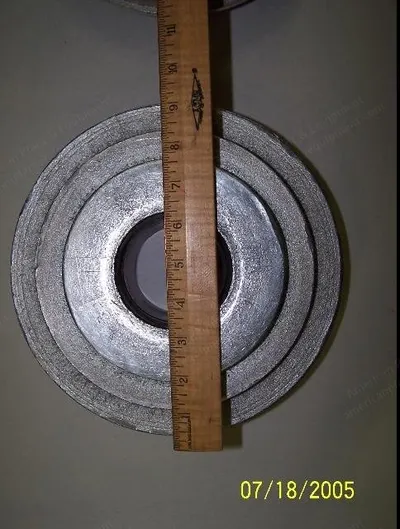

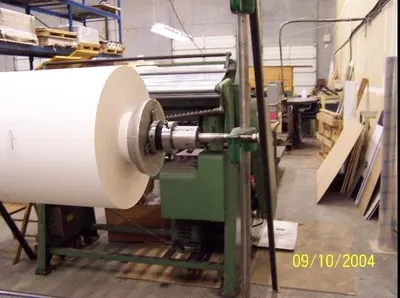

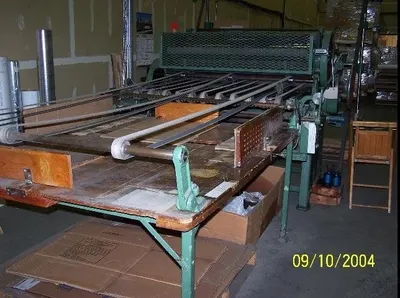

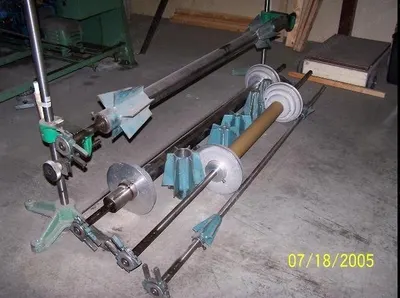

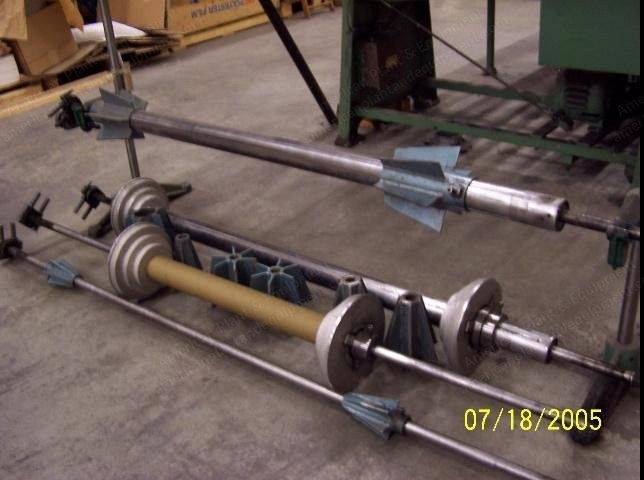

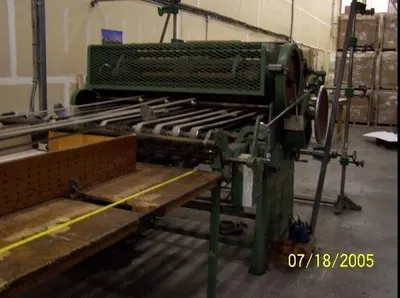

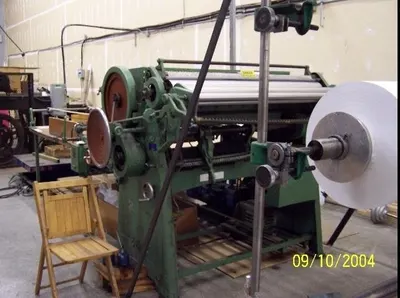

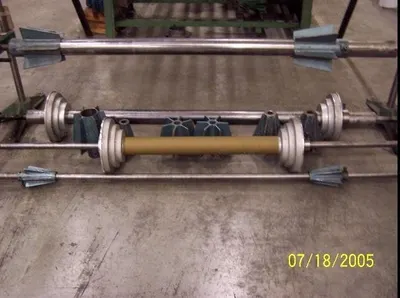

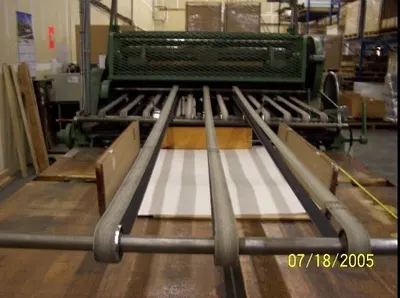

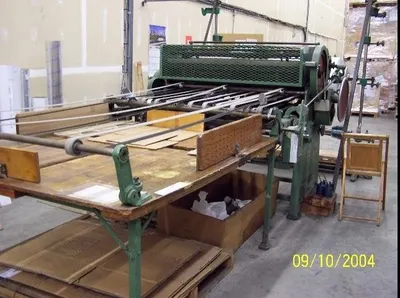

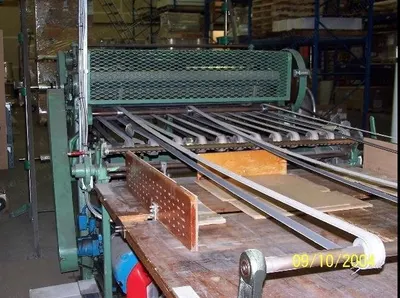

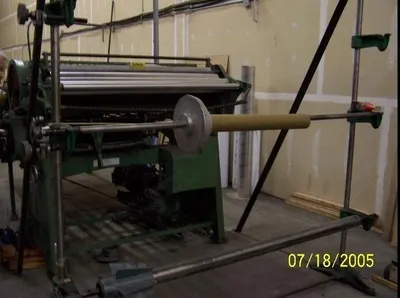

Description Overview Inventory number: E-9186 Beck sheeter model H-1 55 inch (1400 mm) Specifications Stepless feed control Tape delivery Jogger box 4 roll Beck unwind Front of sheeter: jog table is 61 in wide and 71 in long Sheeting unit dimensions: 76 in wide x 83 in long x 63 in high Roll stand: width is 77 1/2 in from upright to upright, 86 in high and is bolted to the floor approximately 32 in from first roller on the sheeter Overall floor space occupied by sheeter and roll stand: 96 in wide x 188 in long Roll Shafts 2 roll shafts: 1 3/16 in x 86 in long 2 roll shafts: 3 in x 86 in long Chucks 2 for the 3 in shaft that can be used for 6, 8 in or 10 in cores 2 for the 1 3/16 in shaft that can be used for 3, 6, 8 in and 10 in cores Tapered Chucks 3 in shaft: 4 chucks for 6 in to 10 in cones 1 3/16 in shaft: 3 chucks for 2 in to 3 in cores (1 chuck used as a drift) 1 3/16 in shaft: 2 chucks for 3 in to 6 in cores 1 3/16 in shaft: 2 chucks for 6 in to 8 in cores
