Rieter, K44, 2001, Compact Spinning Mill, 13104 Spindles, 13x Compact Spinning Frames

Rieter, K44, 2001, Compact Spinning Mill, 13104 Spindles, 13x Compact Spinning Frames

Description

  1. Overview
    1. Inventory number: E-9435
    2. Rieter ultra modern compact spinning mill
    3. 13,104 spindles
    4. Including K44 spinning frames
    5. Producing 1288 t/year ne 50 com4 yarns of high quality, by using the most advanced compact spinning system from Rieter as well as a customer built air conditioning system by Luwa to enable to exploit the full potentials of the compact spinning system
    6. A Savio twin splicer system and an automatic electro-jet handling makes this mill a state of art reference on spinning of fine yarns for high quality weaving and knitting yarns
  2. Blowroom

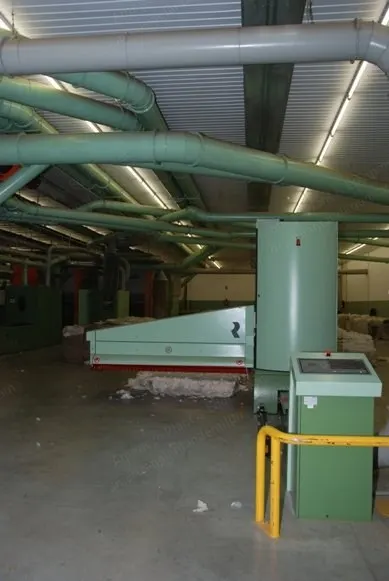

    1. 1 automatic bale plucker Rieter 2001, Unifloc, type A11, including programmer
    2. 1 cleaning machine Rieter 2001, Uniclean type B11
    3. 2 automixers Rieter 2001, Unimix, type B70
    4. 1 foreign matter detector Jossi 2001, type Vision Shield 2
    5. 1 foreign matter detector Jossi 2004, type Vision Shield, master unit
    6. 1 foreign matter detector Jossi 2004, type Vision Shield, slave unit

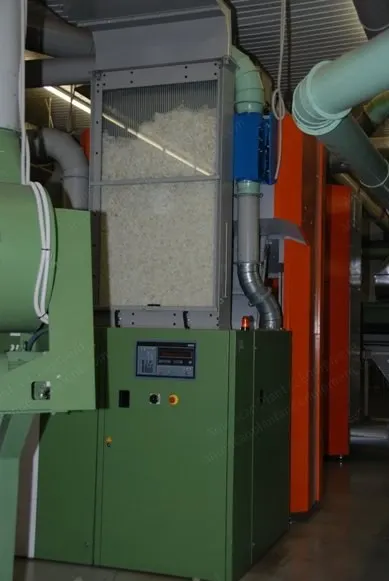

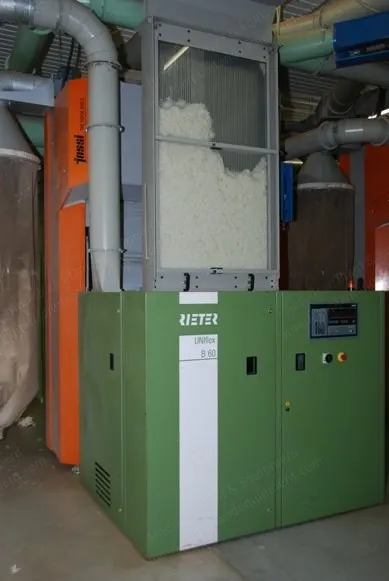

    7. 2 fine openers/flock feeders Rieter 2001, Uniflex, type B70
    8. 1 waste opener/feeder Rieter 2001, type B2/5
  3. Carding

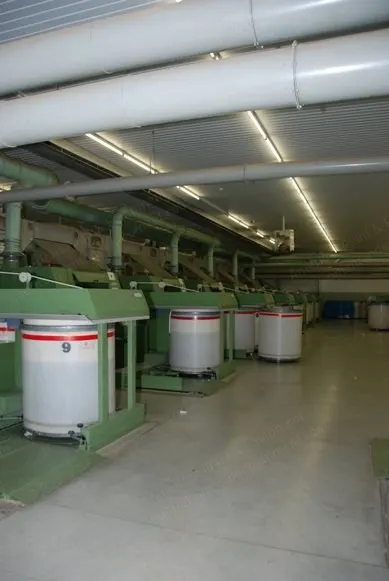

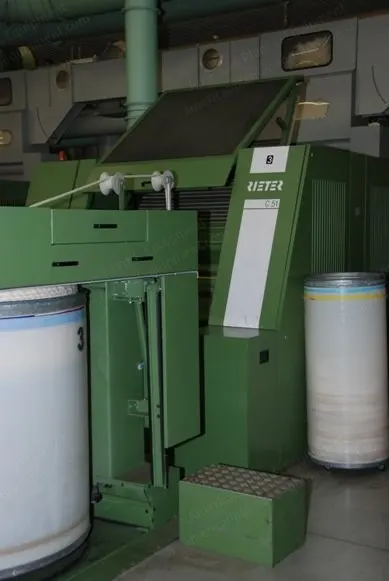

    1. 9 carding machines Rieter 2001, type C51, incl. chute Aerofeed type A70, coiler for cans diameter 40 in
    2. 1 flats rectifying machine Rieter 2001, type JGS-top, 2003
  4. Combing

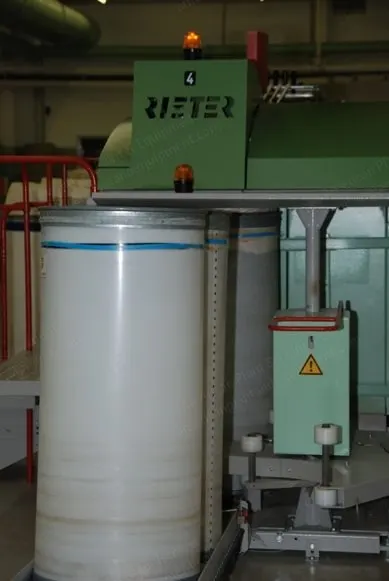

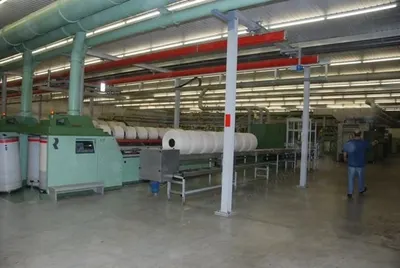

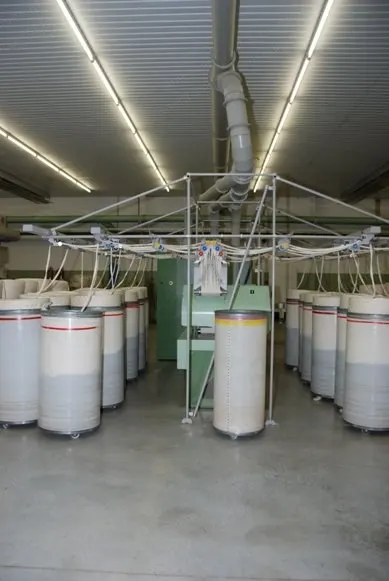

    1. 2 draw frames Rieter 2001, type SB-D10, coiler for cans diameter 20 in

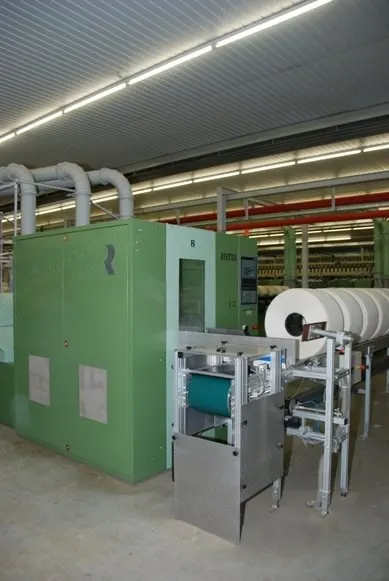

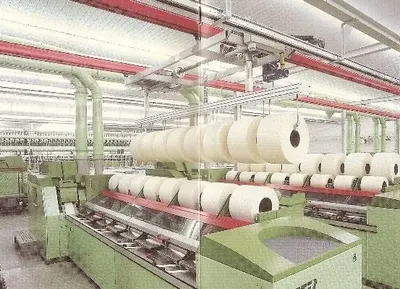

    2. 2 lapformers Rieter 2001, model Unilap, type E32
    3. 1 automatic lap transport Rieter 2001, model Servolap, type E25

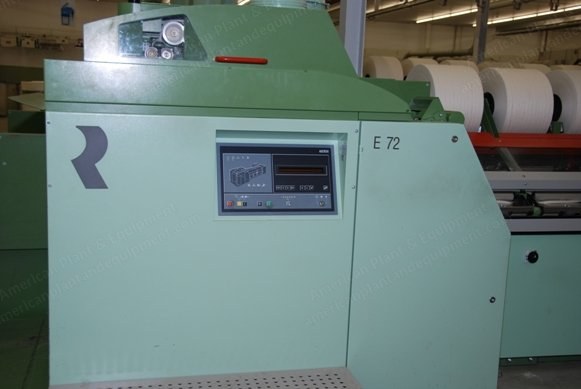

    4. 6 combing machines Rieter 2001, type E72, delivery cans diameter 20, automatic lap changing
  5. Drawing
    1. 2 drawframes with autoleveller Rieter 2001, type RSB-D30C, delivery in cans diameter 20 in
  6. Roving

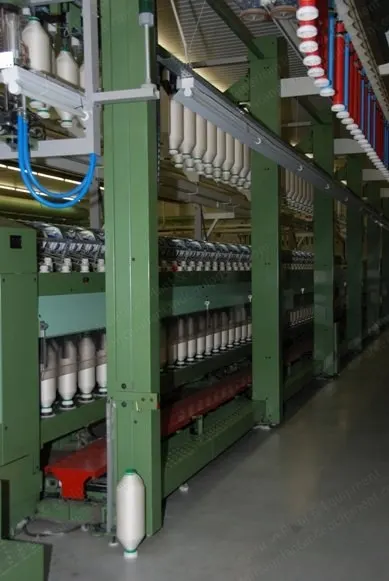

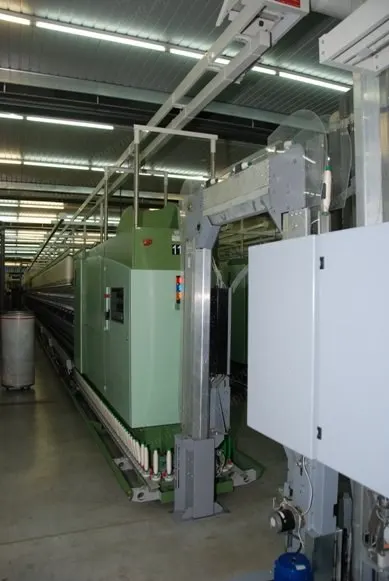

    1. 2 roving frames Rieter 2001, type F33, 120 spindles, Autodof
  7. Spinning

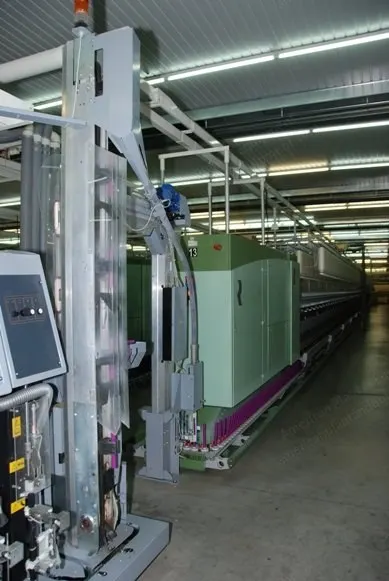

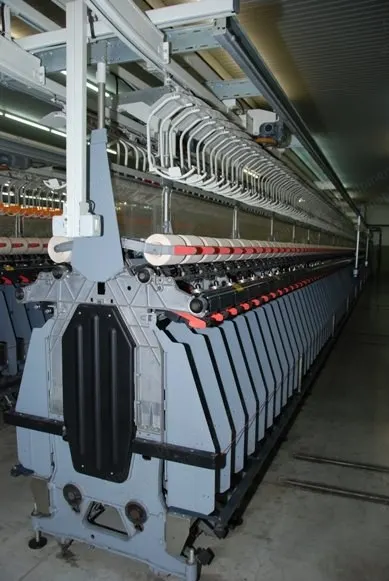

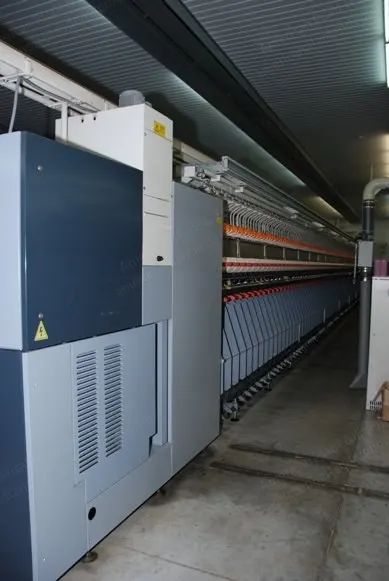

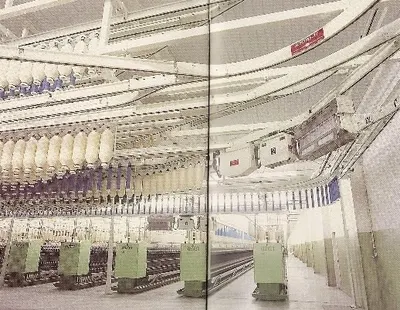

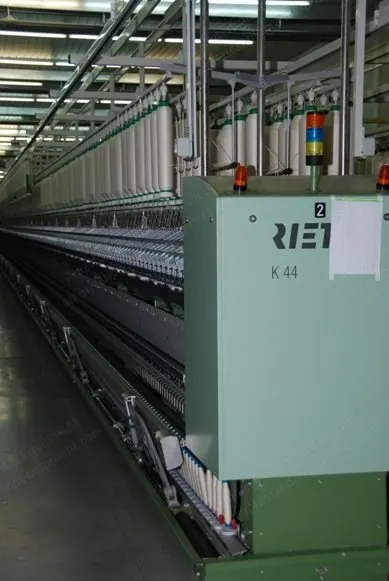

    1. 13 compact spinning frames Rieter 2001 (10x), 2003 (3x), type K44, 1008 spindles each, gauge 70 mm, ring diameter 38 mm, Autodof, overhead cleaner Electro-Jet
    2. Linked to winding
  8. Winding

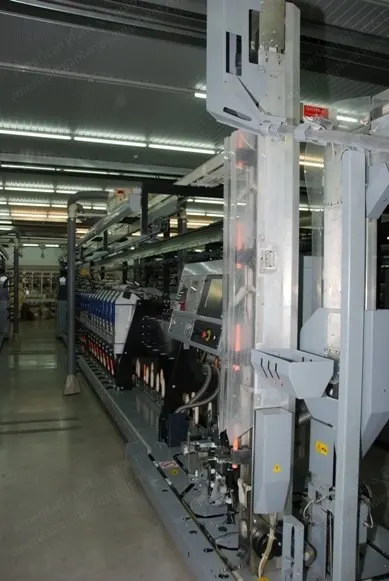

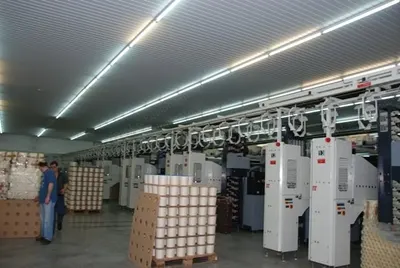

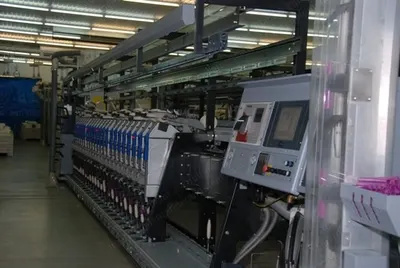

    1. 13 automatic winders Savio 2001 (10x), 2003 (3x), type Orion, 22 heads, clearer Quantum 2, Autodof, twin splice
  9. Twisting

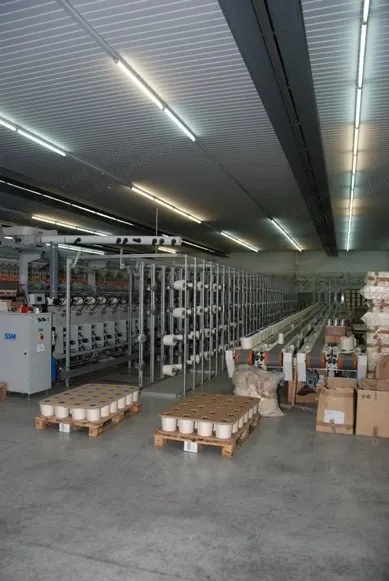

    1. 1 assembling winder SSM 2001, model Digicone, type DP2C/S, 40 heads, 2 ply, Autodof
    2. 2 two-for-one twisting machines Savio 2001, model Geminis, type 201-B, 240 spindles each, Autodof
  10. Yarn Conditioning
    1. 1 automatic vaporisator Leopoldo Pozzi 2001, model Aquafix, type BR-Q-2P-RA tunnel, automatic loading/unloading of pallets including yarn packages
  11. Air Conditioning
    1. Air conditioning and waste recovery centrals Luwa 2001, including separate conditioning units for opening/spinning frames/winders
    2. Waste recovery of opening/cards/combers, including 2 automatic bale presses
  12. Transport Automation

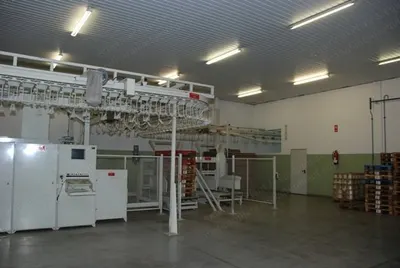

    1. In the mill are following automatic transport systems, make Electro-Jet 2001/2003

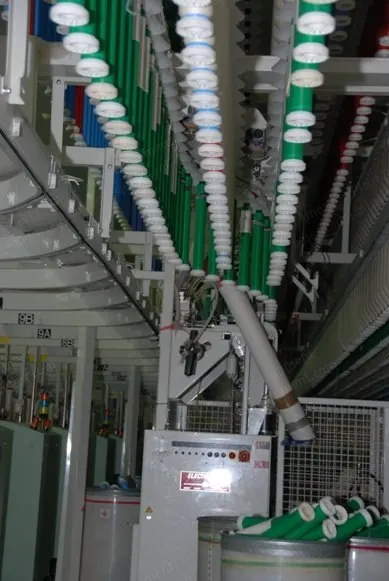

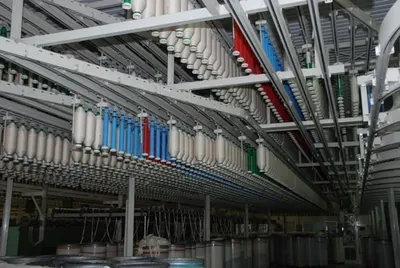

    2. Automatic robots for transportation of roving bobbins and empty tubes between roving frames and spinning frames

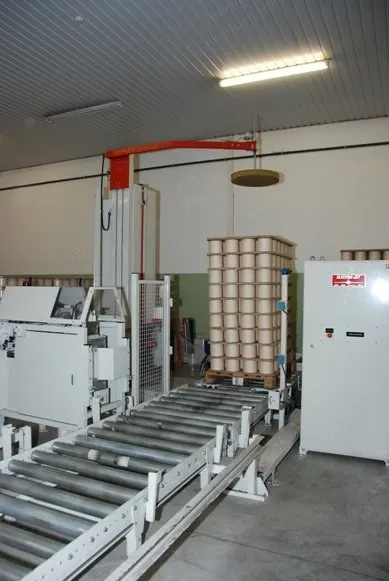

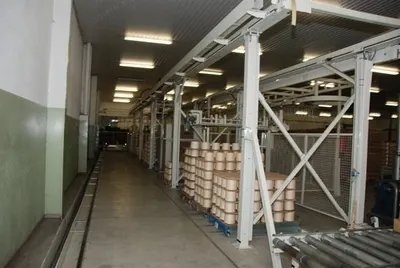

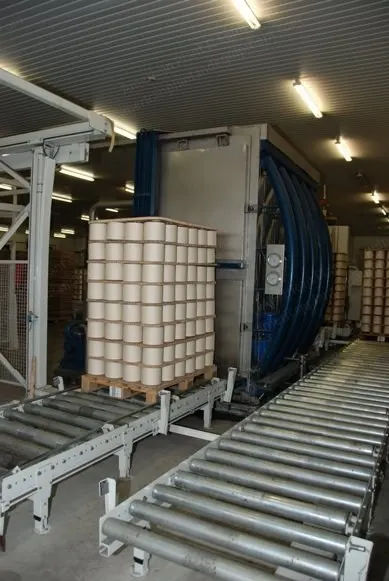

    3. Automatic transports by robotics of yarn cones from winders to paletisation station, yarn conditioning station and packing
    4. Automatic station for cleaning roving bobbins, integrated in transport system
  13. Quality Control Center
    1. Including Spiderweb quality and production management and Uster testing equipment
