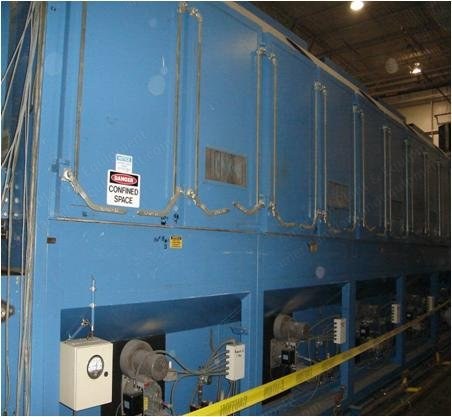

Santex, 1999, 5 Chamber Triple Pass Belt Dryer, 3000mm Working Width, Gas Heated

Santex, 1999, 5 Chamber Triple Pass Belt Dryer, 3000mm Working Width, Gas Heated

Description

  1. Overview
    1. Inventory number: E-9602
    2. Santex belt dryer
    3. Year: 1999
    4. 5 chamber triple pass
    5. Gas heated
    6. Color: RAL 5007 blue
  2. Specifications
    1. Working width: 118.11 in (3000 mm)
    2. Roller width: 125.98 in (3200 mm)
    3. Number of drying chambers: 5 x 2.19 yd (2 m), two levels
    4. Vibration and steaming section: integrated
    5. Evaporation capacity: 3810 lb water/hr
    6. Machine speed: 0.5 - 54.7 yd/min
    7. Exhaust air output: approx. 45,300 cu yd/hr (regulated with energy saving system)
    8. Power supply: 3 x 440 +/- 10% V + N + E, 60 Hz
    9. Control current: 110 +/- 10% V
    10. Installed electric power: approx. 230 kW
    11. Regulations: all components UL-listed
    12. Heating system: natural/liquid propane gas
    13. Burner heating capacity installed: 5 x 450 kW = 7,679,000 BTU/hr
    14. Heating performance at full production: 5,490,000 BTU/hr, 20% saving if use of energy saving system
    15. Drying capacity: approx. 4,690 lb/hr by a coverage of 80% of the working width, from 64% initial moisture content down to 4%
    16. Residual moisture with 100% cotton-1/1-rib, 5.3 oz/sq yd final weight
    17. Operating side in fabric flow direction: right
    18. Drive side in fabric flow direction: left
    19. Control panel position in fabric flow direction: right
