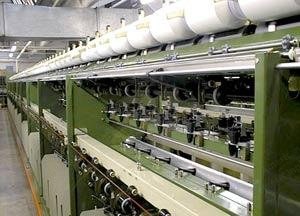

Ratti, R 325 N DFT, 2003, 2x1 Twister, 168 Spindles, 12 Sections, 22 kW

Description

  1. Overview
    1. Equipped with 168 spindles
    2. False twist magnetic units and heaters for setting the yarns
    3. Year: 2003
    4. Twisting machines suitable for processing yarns with continuous filaments on to cops of approx net weight grs. 2700/3000
  2. Specifications
    1. Number of sections: 12
    2. Spindles per section: 14
    3. Spindle model: DT140N
    4. Machine length: 24,351 mm
    5. Machine width: 860 mm
    6. Machine height: 2418 mm
    7. Height at take-up: 1750 mm
    8. Approx. weight: 5500 kg
    9. Drive motor power: 22 kW
    10. Power supply V/Hz: 380/50
  3. Condition
    1. Used industrial machine in working condition
  4. Included
    1. False twist magnetic units
    2. Heaters for setting the yarns
    1. Contact for location details
