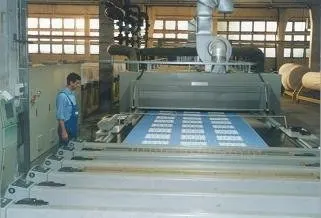

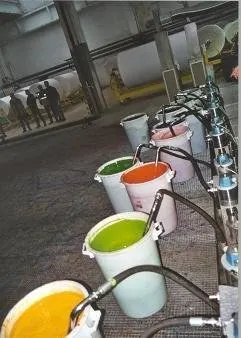

Description Overview Inventory number: E-9806 Reggiani rotary printer, 3200 mm wide Year: 2001 Type / model: Unica - 240/23 - 320/15/12 Magnetic, automatic, computerized Multidrive actuation - digital Number of installable colors: 15 Number of installed colors: 12 Usable printing height: from 100 mm to 3200 mm Entry mod SRV + SW 7533 from giant roll Machine working side: left Color supply side: right Color holding racles extraction side: right Layout according to drawing AP 05.468 Printing System Double suctioning system with rotating filters and brushes, mod. Kalin Gluing by means of vessel containing water soluble glue Color supply by means of compressed air pumps with double filters Printing belt made of synthetic rubber + Kevlar - Habasit - multilayer Possible printing ratios: 640 to 1018 Supplied printing ratios: 640, 725, 820 and 914 3 series of racles for printing in 2400, 2800 and 3200 mm Continuous forced washing of the belt Drying System Dryer with 6 fields, mod. JDL 320 / 6 - with diathermic oil Forced ventilation with air percussion Internal network for transporting textile, made of Kevlar Temperature regulation groups Exit on giant roll Dimensions and Space Foundation on ground service Required space occupied by the machine: 300 sqm Working space around the machine: 150 sqm Length: 35 m Width: 5 m Width including washing - extraction part: 9 m Height including fans: 4 m Performance and Consumption Speed of the machine up to 90 meters per minute Manpower required for each work shift: 4 people Installed electrical power: 250 kW/hour Absorbed electrical power: 180 kW/hour Water consumption for washing the belt: 3 cubic meters/hour Water consumption for washing color pumps, on average: 3 cubic meters/hour Compressed air at 8 bar perfectly dried: 1.2 cubic meters/minute Diathermic oil required for drying: 1,200,000 kg calories/hour
