Stentex, Stentotherm 3300, 1999, 2200mm Working Width, Natural Gas Heating, 310 kg/h Capacity

Stentex, Stentotherm 3300, 1999, 2200mm Working Width, Natural Gas Heating, 310 kg/h Capacity

Description

  1. Overview
    1. Inventory number: E-9831

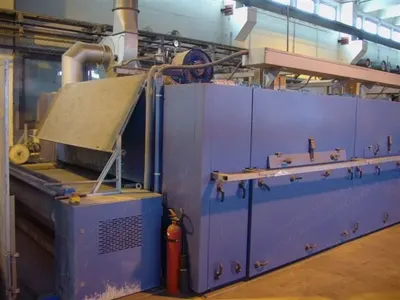

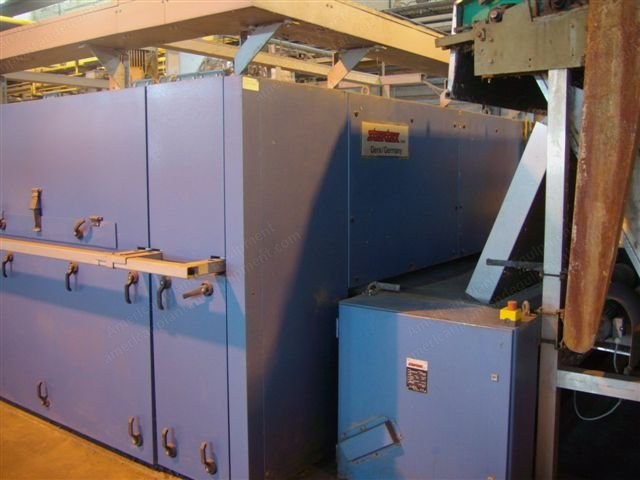

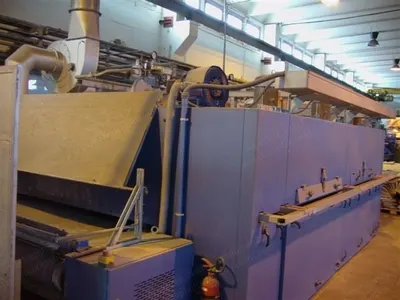

    2. Stentex type Stentotherm 3300 dryer (suction oven)
    3. Year: 1999
    4. Working width: 2200 mm
    5. Speed: 1 to 15 m/min
    6. Production speed: 10 m/min
    7. Fibers: cotton
  2. Specifications
    1. Zones on entry and exit of the thermo zones: each 620 mm
    2. Semi-direct natural gas heating
    3. Capacity approx. 310 kg/h on entry humidity 70%, exit humidity 8%, temperature 160 °C (resp. up to 230 °C)
    4. Electrical: 3 ~ N/PE, 50 cycles, 400 V
    5. Control voltage: 230 V AC, 24 V DC
    6. Max. steam pressure: 1.0 MPa
    7. Current: 100 A
  3. Dimensions
    1. Approx. 7400 x 4800 x 3400 mm (L x W x H)
