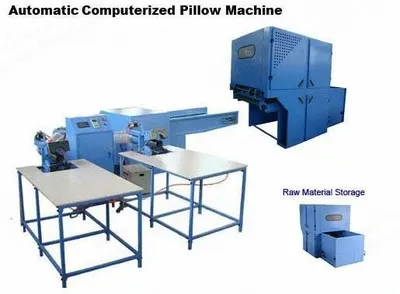

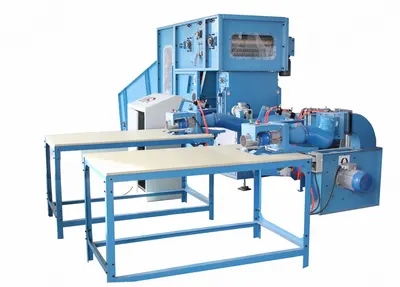

NovaStar, PC138, Automatic Computerized Pillow Filling Line, 6 Pillows/min, 300kg Hopper Capacity, 11.8kW (New)

NovaStar, PC138, Automatic Computerized Pillow Filling Line, 6 Pillows/min, 300kg Hopper Capacity, 11.8kW

Description

  1. Overview
    1. Model: PC138
    2. Filling head is controlled by a PLC
    3. Weighing system control is according to filling discharge time which is controlled by PLC
    4. Control system: computerized control system (PLC)
    5. Certification: CE or UL
    6. Electrical key parts are imported from France, Japan and USA as per UL and CE standards
  2. Specifications
    1. Voltage: 220V/60Hz/3 phase - or as per customer specifications
    2. Power: 11.8 kW
    3. Air pressure: 0.86 MPa (125 PSI)
    4. Capacity: 6 pillows per minute; 600 grams per unit (1.32 lbs)
    5. Hopper feed capacity: around 300 kg (600 lbs)
    6. Weight: 1.8 MT (4000 lbs)
    7. Labor needed: 1 operator
    8. Floorspace required: 9000 x 5000 x 2100 mm (29.5 feet x 16.4 feet x 82 inches)
  3. Included Equipment

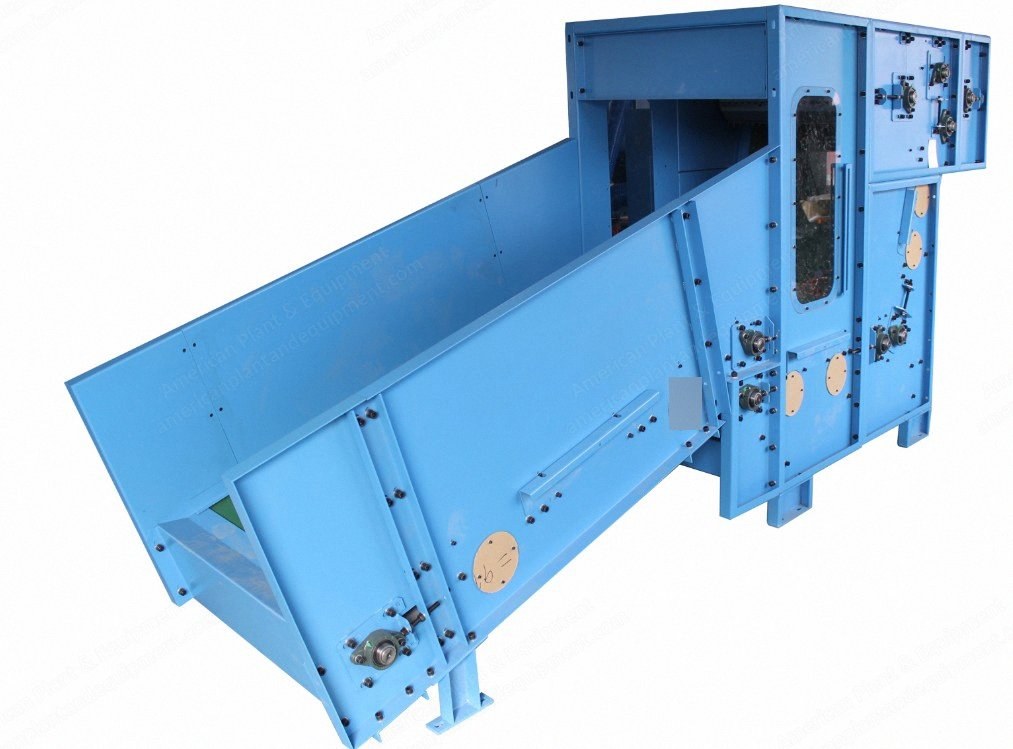

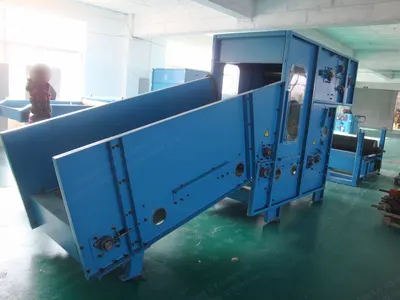

    1. Automatic hopper feed and fiber transport system
    2. Fiber opener
    3. Fiber blower
    4. Double slot filling heads
  4. Guarantee
    1. 1 year material for free
    2. 6 months for electrical key parts
    3. After sales service forever
