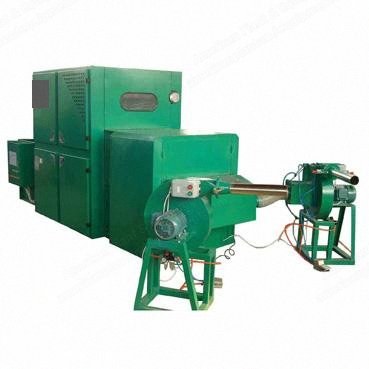

NovaStar, PC139, Automatic Pillow Machine, 6 pillows/min, 11.8kW, 300kg Mixing Chamber (New)

NovaStar, PC139, Automatic Pillow Machine, 6 pillows/min, 11.8kW, 300kg Mixing Chamber

Description

  1. Overview
    1. Reference number: E-9988
    2. Automatic pillow machine
    3. Model: PC139
    4. Certification: CE CO
  2. Specifications
    1. Installation area: 9000 x 5000 x 2100 mm (29.5 feet x 16.4 feet x 82 inches)
    2. Mixing chamber size: around 300 kg (600 lbs)
    3. Voltage: as per customer requirement
    4. Power: 11.8 kW
    5. Capacity: 6 pillows per minute
    6. Weighing: according to the time of filling discharge
    7. Weight: 1.8 mt (4000 lbs)
    8. Labor: 1 operator
    9. Control system: computerized control system
  3. Description
    1. Works best with 2 or 3 dimensional hollow siliconized polyester fiber shorter than 100 mm (4") length and larger diameter than 30 mic.
    2. Mainly used for filling pillows, cushions, comforters and big soft toys.
    3. Fiber opener with metallic interlock base wires (the interlock base wire has 4 times usage life than the normal wire).
    4. One operator for raw material feeding, opening and pillow filling.
  4. Guarantee
    1. 1 year mechanical parts for free; 6 months for electrical key parts; after sales service forever.
