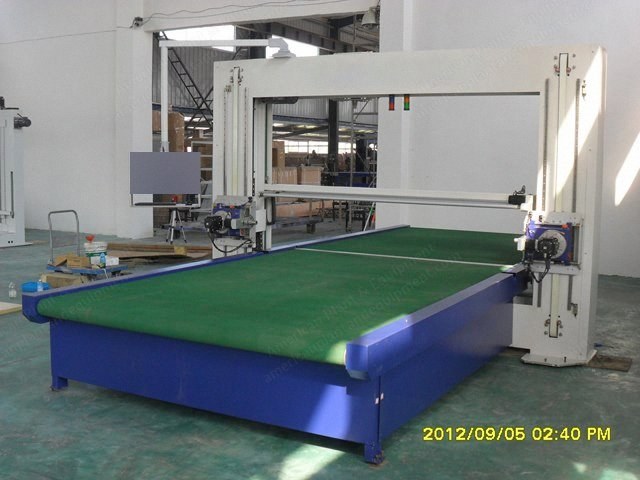

NovaStar, FN148, CNC Horizontal and Vertical Foam Cutting Machine, 3000x2200x1250mm Capacity, 6kW, Conveyor Work Table (New)

NovaStar, FN148, CNC Horizontal and Vertical Foam Cutting Machine, 3000x2200x1250mm Capacity, 6kW, Conveyor Work Table

Description

  1. Overview
    1. Suitable for cutting various and complex geometric shapes.
  2. Specifications
    1. Machine model: FN148
    2. Max. length of foam block: 3000mm standard, 4500mm customized
    3. Max. height of foam block: 1250mm
    4. Max. width of foam block: 2200mm
    5. Work table: Work table with conveyor
    6. Ac power: Per customer
    7. Total power: 6 kW
    8. Cutting precision: ±0.5mm
    9. Max. cutting speed: Depending on different materials, the max cutting speed is 15 m/min
  3. Blade
    1. Pressure of blade: 6 bar
    2. Travel distance of blade: 48mm
    3. Size of blade: 500mm × 3000mm × 2300mm
    4. Vibrating speed is 3000 t/min
  4. Operating Options
    1. Modulator demodulator (for remote diagnosis and maintenance)
    2. Automatic programming software
    3. Computer control
    4. Auto adjusting of the angle
    5. Press roller runs independently
    6. Hanging control panel is optional
