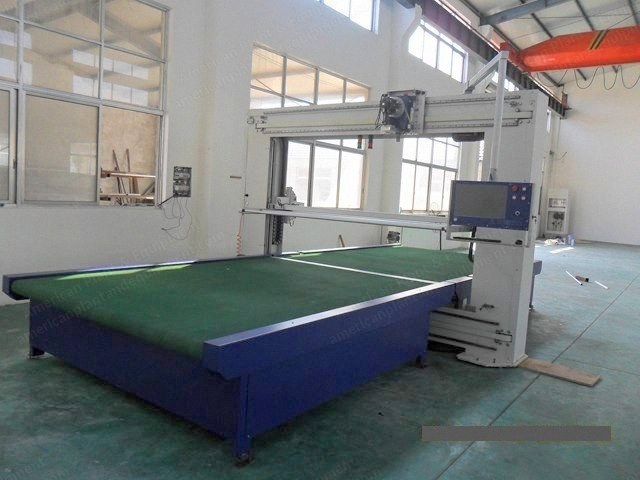

NovaStar, FN150, CNC Vertical Foam Cutting Machine, with Conveyor, 3000mm Max Length, 1250mm Max Height, 2200mm Max Width (New)

NovaStar, FN150, CNC Vertical Foam Cutting Machine, with Conveyor, 3000mm Max Length, 1250mm Max Height, 2200mm Max Width

Description

  1. Overview
    1. Suitable for cutting PU soft foam, sticky foam, latex, rebond foam, frame foam and polyethylene.
    2. Highly recommended for slicing sheet product, irregular shape and other geometric profile.
  2. Specifications
    1. Machine model: FN150
    2. Max. length of foam block: 3000mm (standard), 4500mm (customized)
    3. Max. height of foam block: 1250mm
    4. Max. width of foam block: 2200mm
    5. Work table: work table with conveyor
    6. Ac power: per customer
    7. Total power: 5kw
    8. Max. cutting speed: 15m/min
    9. Cutting precision: ±0.5mm
    10. Blade pressure: 6 bar
    11. Blade travel distance: 48mm
    12. Blade size: 500mm × 3000mm × 2300mm
    13. Vibrating speed: 3000t/min
  3. Operating Options
    1. Modulator demodulator (for remote diagnosis and maintenance)
    2. Automatic programming software
    3. Computer control
    4. Automatically adjusting the angle
    5. Press roller runs independently
    6. Hanging control panel is for option
  4. Cutting Speed Note
    1. Depending on different materials, the max cutting speed is 15m/min.
