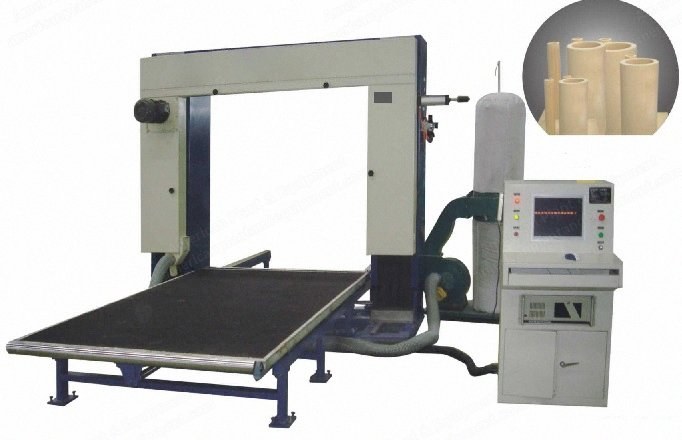

NovaStar, FN157, Contour Cutting Machine, Max Cutting Size 2000x1600x1200mm, 1.5m/min Working Speed (New)

NovaStar, FN157, Contour Cutting Machine, Max Cutting Size 2000x1600x1200mm, 1.5m/min Working Speed

Description

  1. Overview
    1. Max. cutting sizes: L2000 x W1600 x H1200 mm
    2. Line blade parameter: Ф1.2 x L7160 mm
    3. Cutting precision: ± 0.5 mm
    4. With break off protection
    5. Working speed: 1.5 m/min
    6. Frame lifting speed: 1.5 m/min
  2. Control System
    1. Cnc type: Computer control
    2. Display screen size: 15"
    3. Operation system: Windows 2000
    4. Editable program axis: X, Y
    5. Edit language: C++
    6. Input format: G code (ISO)
  3. Specifications
    1. Machine weight: 2500 kg
    2. Machine dimensions: L4800 x W2580 x H2540 mm
  4. Included
    1. Spare parts: 1 set of maintenance tool
