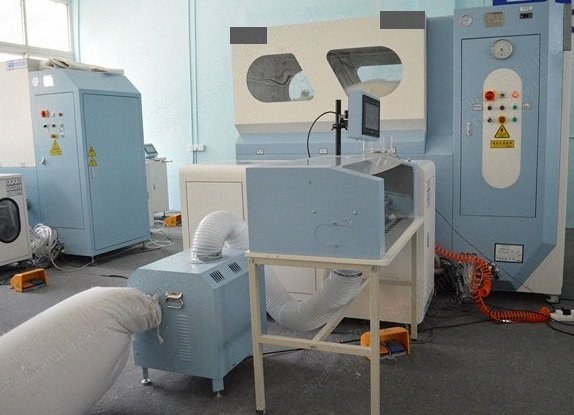

Description Overview Used for down filling for garments and quilts Capable of handling 90, 80, 70, 60 and 50 dry feather High-pressured air is used to absorb feather with automatic weighing system Components Feeding blower Control panel and 2 silos 6 weighing devices 2 filling nozzles 2 touch screens Portable dust-free machine (not in the picture) 2 independent filling nozzles Control And Programming Each panel can be set to 100 grids Machine can save up to 100 sets of data for different panels Controlled by computerized program and touch screen Performance Specifications Filling speed: 1 to 8 g/sec (adjustable) Single down loading volume: approx. 10 to 12 kg (for duck down) Filling accuracy: ±3% Quantitative accuracy: 0.01 g Air Requirements Air pressure: ≥0.8 m³/min; ≥7.5 kW Minimum air pressure: ≥0.58 m³/min Air tank: ≥0.6 m³ Dimensions And Floor Space Main machine: (L) 2430 mm × (W) 850 mm × (H) 2040 mm Weighing box: (L) 1600 mm × (W) 570 mm × (H) 1050 mm Floor space for all equipment: 4000 mm × 6000 mm Additional Features With central dust-removal system
