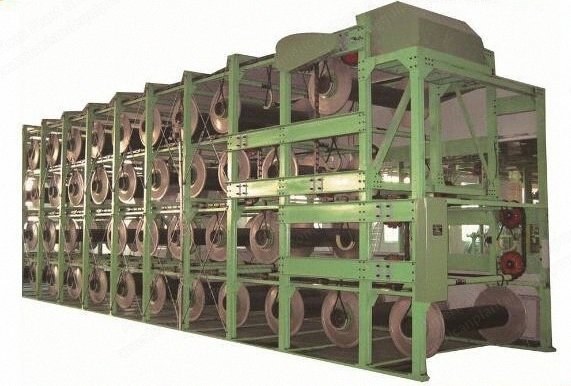

Description Overview Max beam storage quantity: 100 pcs Carrousel layers: 4 Double exits Carrousel floor space: (l) 36100 mm × (w) 3450 mm × (h) 5620 mm Operation space: 2000 to 2500 mm Beam Specifications Diameter of beam flange: 1100 mm Max beam tube length: 2150 mm Max weight for single beam: 1100 kg Mechanical Construction Chain pitch: 92 mm Pillar: rectangular tube with 6 mm thickness Guide rail: #10 u-steel, 6 mm thick Two power-driven hydraulic lift platforms at left and right exit respectively Control and Automation Plc control: brand japanese “omron” Touch screen: brand taiwanese “weinview” Operation type: automatic or manual, forward and backward Running speed: ≥ 4 m/min Two plc control systems for left and right exit respectively Two hmi touch screens for left and right exit respectively Automatic beam selection based upon technique data Electrical Total power: 11 kw
