NovaStar, FG112, EPS Block Molding Production Line, 2000x1000x500mm Block Size, 3-Direction Cutting (New)

NovaStar, FG112, EPS Block Molding Production Line, 2000x1000x500mm Block Size, 3-Direction Cutting

Description

  1. Overview
    1. Batch pre-expander type PSJ-1100
    2. Wind cooling block molding machine type FG112
    3. Eps foam cutting machine PSC-2000
    4. Auxiliary equipment

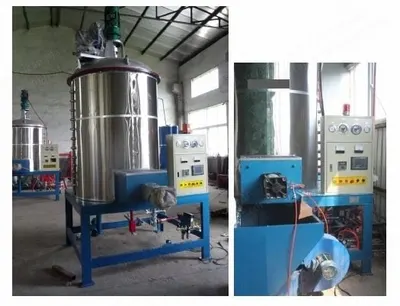

  2. Batch Pre-Expander Model PSJ-1100
    1. Features: PLC control and touch screen
    2. Features: Closed expansion chamber with pressure sensor control
    3. Features: Temperature of expansion chamber controlled by temperature sensors and valves
    4. Features: Density controlled by vibrating switches
    5. Features: Density tolerance ≤±2%
    6. Features: Temperature inside chamber kept around 70°C
    7. Expansion vessel: Ø1100mm × 1500mm
    8. Range of density: 10 to 60 kg/m³
    9. Production efficiency: 150 to 300 kg/h
    10. Steam pressure: 0.4 to 0.8 MPa
    11. Compressed air pressure: 0.6 to 0.8 MPa
    12. Inlet of steam: 50mm
    13. Steam consumption: 6 to 10 kg/cycle
    14. Compressed air consumption: 0.5 to 0.9 m³/cycle
    15. Machine weight: about 2500 kg
    16. Machine dimensions: (L) 1800mm × (W) 2200mm × (H) 4600mm

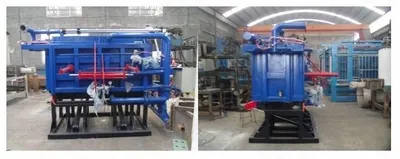

  3. Wind Cooling Block Molding Machine Type FG112
    1. Features: Made of high quality steel with heat treatment
    2. Features: Controlled by PLC and touch screen
    3. Features: Machine cavities made of special aluminum alloy
    4. Features: Capable of producing both high and low density EPS foam blocks
    5. Net size of cavity: (L) 2060mm × (W) 1050mm × (H) 530mm
    6. Block size: (L) 2000mm × (W) 1000mm × (H) 500mm
    7. Steam pressure: 0.6 to 0.8 MPa
    8. Inlet diameter of compressed air: Ø80mm
    9. Power consumption: 7 kW
    10. Steam consumption: 20 to 30 kg/cycle
    11. Consumption of compressed air: 1 to 1.5 m³/cycle
    12. Machine weight: about 2500 kg
    13. Machine dimensions: (L) 3600mm × (W) 2000mm × (H) 2750mm
  4. Eps Foam Cutting Machine Model PSC-2000
    1. Features: Made of high quality rectangle steel pipes
    2. Features: Cutting type: electric thermal wire
    3. Features: With horizontal, vertical and block cutting devices
    4. Features: Three direction cutting
    5. Machine overall dimensions: (L) 4800mm × (W) 19502mm × (H) 1850mm
    6. Max. cutting size: (L) 2000mm × (W) 1000mm × (H) 500mm
    7. Three direction cutting: horizontal, vertical and crosscut
    8. Horizontal cutting wire: max. 32
    9. Vertical cutting wire: max. 10
    10. Min. thickness of foam to be cut: 10mm
    11. Cutting speed: 0 to 2 m/min
    12. Total installed power: 11.2 kW
    13. Machine weight: 860 kg
  5. Auxiliary Equipment
    1. Silo: total 76 m³ including 4 pcs × 19 m³ (2200mm × 2200mm × 4000mm each)
    2. Boiler: capacity 1000 kg/h, steam pressure 0.7 MPa, fuel: natural gas or heavy/light oil
    3. Steam accumulator: total volume 8 m³, operating pressure max. 7 bar

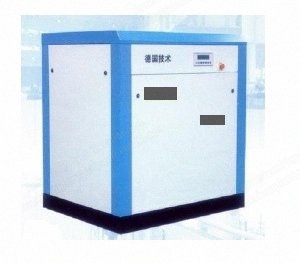

    4. Air compressor: air flow 2 m³/min, operating pressure 7 bar, power 15 kW
    5. Compressed air tank with accessory: volume 2 m³, operating pressure max. 7 bar
