NovaStar, Frozen French Fry Production Line, New, 300kg/h, Stainless Steel 304 (New)

NovaStar, Frozen French Fry Production Line, New, 300kg/h, Stainless Steel 304

Description

  1. Processing Procedure
    1. Potato peeling and washing machine
    2. Inspection machine
    3. Slicing machine
    4. Hoister
    5. Blanching machine
    6. Drying machine (or vibrating screen)
    7. Frying machine (with oil filter)
    8. Drying machine
    9. Mixer (for chips)
    10. Packing machine
  2. Potato Peeling Machine
    1. Includes motor, transmission, and nine brush rollers.
    2. Suitable for continuously peeling and washing potato, sweet potato, root vegetable, etc.
    3. Model: 1800
    4. Power: 3 kW
    5. Output: 1 to 1.5 tons/hour
    6. Made of stainless steel 304
    7. Machine dimensions: (L) 2100 × (W) 860 × (H) 850 mm
  3. Inspection Machine With Conveyor
    1. Used to inspect damaged potato; speed adjustable with inverter control.
    2. Model: 40
    3. Power: 0.75 kW
    4. Made of stainless steel 304
    5. Machine dimensions: (L) CQ101 × (W) 800 × (H) 850 mm
  4. Potato Cutting Machine
    1. Used for potato slicing; finished product rate over 99%.
    2. Model: 600-B
    3. Power: 1.5 kW
    4. Output: 800 kg/h
    5. Cutting thickness: 5 to 50 mm (adjustable)
    6. Made of stainless steel 304
    7. Machine dimensions: (L) 820 × (W) 760 × (H) 1000 mm
    8. Machine weight: 120 kg
  5. Potato Chip Conveyor
    1. Model: 2500
    2. Conveyor size: 2500 × 800 mm
    3. Power: 0.75 kW
    4. Made of stainless steel 304
  6. Potato Chip Blanching Machine
    1. With stepless speed control.
    2. Blanching temperature: 5 to 98 °C adjustable
    3. Blanching cycle: 1.5 to 8 minutes
    4. Blanching type: electric or steam heating
    5. Thickness of insulating layer: 50 mm
    6. Model: CQ101
    7. Output: 0.55 to 1.5 tons/hour
    8. Net belt width: 50 mm
    9. Cooking temperature: 5 to 95 °C adjustable
    10. Made of stainless steel 304
    11. Machine dimensions: (L) CQ101 × (W) 850 × (H) 850 mm

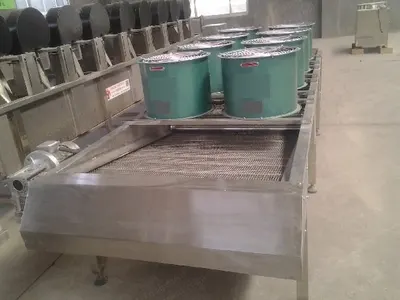

  7. Dryer
    1. Model: CQ101
    2. Belt width: 800 mm, made of stainless steel
    3. Stepless speed control
    4. Machine dimensions: (L) CQ101 × (W) 900 × (H) 1200 mm
    5. Thickness of stainless wall: 2.5 mm
    6. Blower motor: 0.75 kW × 10 sets
    7. Belt motor: 0.75 kW
  8. Continuous Fryer With Tunnel
    1. Model: SPDZ4000
    2. With oil filter
    3. Output: 200 to 400 kg/h
    4. Frying cycle: 1.5 to 10 minutes adjustable
    5. Frying temperature: 0 to 240 °C adjustable
    6. Made of stainless steel, wall thick 1.2 mm, conveyor thick 3 mm
    7. Machine dimensions: (L) CQ101 × (W) 1030 × (H) 2500 mm
    8. Conveyor width: 800 mm
    9. Thickness of insulating layer: 50 mm
  9. Potato Chip Dryer
    1. Model: CQ101
    2. Fan motor: 0.75 kW × 8
    3. Conveyor made of stainless steel
    4. With stepless speed control
    5. Conveyor width: 800 mm
    6. Conveyor motor: 0.75 kW
    7. Machine dimensions: (L) CQ101 × (W) 900 × (H) 1200 mm
  10. Seasoning Mixer
    1. Model: 1500
    2. Power: 1.5 kW
    3. Output: 1000 kg/h
    4. Rotating cylinder made of stainless steel
    5. Machine dimensions: (L) 1700 × (W) 1080 × (H) 1500 mm

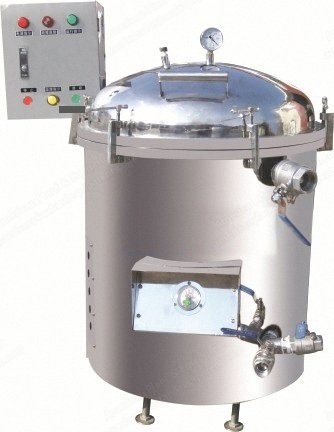

  11. Vacuum Oil Filter For Fryer
    1. Diameter of vacuum chamber: Ø595 mm
    2. Power: 1.5 kW
    3. Filter size: 0.62 m²
    4. Machine overall dimensions: (L) 850 × (W) 850 × (H) 1000 mm
  12. Potato Chip Packing Machine
    1. Packing speed: 45 packs/min depending on the quality of packaging materials
    2. Measurement accuracy: ≤±2
    3. Bag size: (L) 100-400 mm × (W) 100-350 mm
    4. Bag type: uses roll film, automatic pack and seal
    5. Film thickness: 0.06-0.12 mm
    6. Packaging materials: BOPP/CPP, PET/AL/PE composite materials, such as hot
    7. Air consumption: 0.8 MPa 0.8 m³/min
    8. Air compressor: not less than 1 cubic
    9. Height of machine: 2800 to 3955 mm
