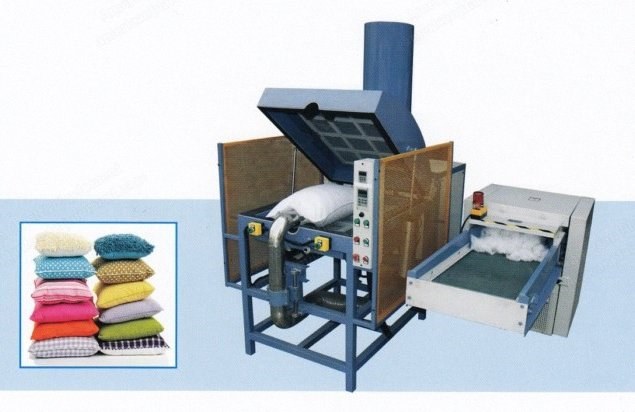

Vacuum filling machine for fabric pillow and cushion filling.
Suitable material is siliconized staple fiber.
Filling is carried out by suction, not the traditional blow, which can make filling materials go in all directions and come to the 4 corners of the pillow or cushion.
The after-filling effect will be better than all other filling.
The line can set the weight for each pillow or cushion approximately.
Total capacity: 2 to 3 pieces per minute.
Specifications
Equipped with a frequency converter; the filling speed is adjustable to the filling surface is very even.
Fiber carding machine dimensions: 2150 x 900 x 940 mm.
Fiber carding machine power: 4.75 kW.
Fiber carding machine net weight: 600 kg.
Fiber suction and silensor dimensions: 700 x 930 x 2450 mm.
Fiber suction and silensor power: 7.5 kW.
Fiber suction and silensor air pressure: 1 mpa.
Fiber suction and silensor net weight: 300 kg.
Vacuum filling machine dimensions: 2990 x 1700 x 2450 mm.
Vacuum filling machine air pressure: 1 mpa.
Vacuum filling machine net weight: 400 kg.
