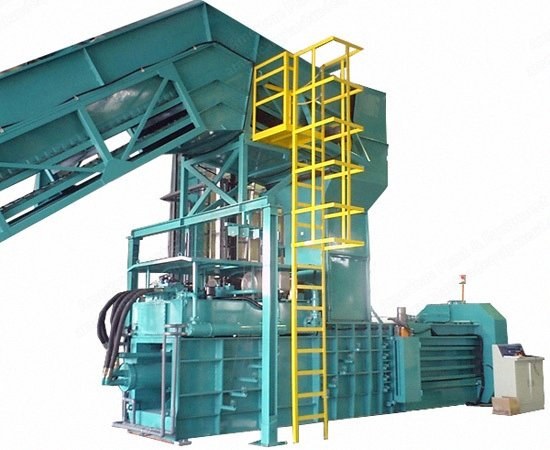

NovaStar, BP100, 120 Tons, 8 to 10 Tons/Hour, 16900x15000x5025mm (New)

NovaStar, BP100, 120 Tons, 8 to 10 Tons/Hour, 16900x15000x5025mm

Description

  1. Overview
    1. Nominal pressure: 120 tons
    2. Total power: 70 kW
    3. Number of output bales: 14 to 17 bales/hour
    4. Output: 8 to 10 tons/hour
    5. Working type: auto hydraulic baling, auto packing
    6. Auto feeding, compressing, wire cutting, and baling
    7. Bale length adjustable
    8. Auto counter
    9. With compressing and diverging devices
  2. Specifications
    1. Bale sizes: (L) adjustable × (W) 914 × (H) 1000 mm
    2. Product weight: 500 to 700 kg (for density 500 to 550 kg/m³)
    3. Hopper dimensions: (L) 1750 × (W) 914 mm
    4. Wire used: 2.8 to 3.2 mm
    5. Molding blade: double-shearing (adjustable pressure of side wall), replaceable blade
    6. Stranded wire: toothed, geared
    7. Oil tank capacity: 1200 liters
    8. Strapping mode: oil pressure tightening and cutting device
    9. Number of strapping wire: 4
    10. Blade: subsectional toothed blade
    11. Cutting mode: breakthrough
    12. Bottom structure: trolley and rail, main frame made of 12 mm and 18 mm thick steel plate
    13. Pushing system: wheel device
    14. Length of fixed compressing: total 8 rails, each 2950 mm long
    15. Lubricating system: automatic system
    16. Compressing oil tank: D250 × d130 × L80 mm
    17. Main oil tank: D250 × d180 × L2090 mm
    18. Machine weight: about 17 tons
    19. Conveyor weight: about 6 tons
    20. Machine dimensions: (L) 16900 × (W) 15000 × (H) 5025 mm
  3. Conveying System
    1. Chain: wear-resisting Taiwan brand
    2. Mixed strength belt: PVC German brand
    3. Energy conserving inverter: Denmark HLP
    4. Gearbox: Taiwan upright adjustable transmission speed
    5. With emergency control button at both sides of conveyor
    6. With auto lubricating oil tank
    7. Cooling and circulating system
  4. Hydraulic and Cooling System
    1. Motor: Jinmen Jinfulin
    2. Oil pump: duplex-pump
    3. Cooling system: OR600 cooler one set
    4. Cooling system: can work long-term under 60°C without water circulation
    5. Pressure throat: Italian or German oil-pressured throat tube
    6. Oil seal: Japan NOK brand
    7. Hydraulic oil: #68 anti-wear hydraulic oil (can work normally -30°C)
  5. Control System
    1. With Mitsubishi PLC programming control system
    2. PLC: Japan Mitsubishi or German Siemens brand
    3. With LCD touch screen
    4. With LED display to show baling length
  6. Included Components
    1. Consists of main frame, oil tank and pump, feed hopper, auto tying device, control panel, and belt conveyor, etc.
