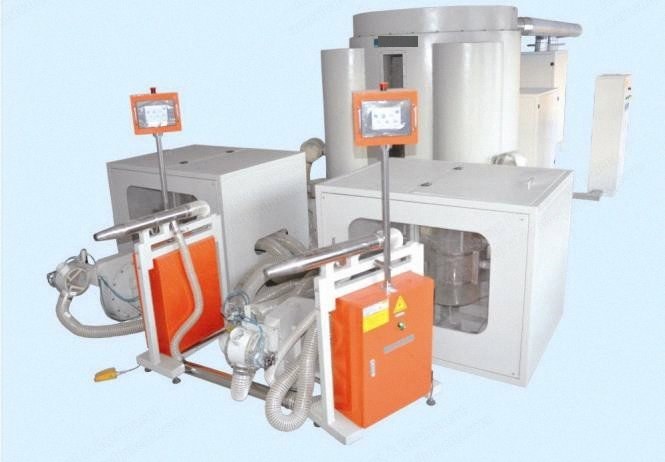

NovaStar, PC152, Twin Nozzle, 11 kW, 2 to 100g Filling Range, Weighing Down & Feather Filling Machine (New)

NovaStar, PC152, Twin Nozzle, 11 kW, 2 to 100g Filling Range, Weighing Down & Feather Filling Machine

Description

  1. Overview
    1. Product name: Weighing down and feather filling machine
    2. Type: PC152
    3. Fully enclosed design to keep surroundings clean and to save material
    4. Automatic weighing with accurate load cell to ensure production quality
    5. Nice design suitable for all kinds of fabric
    6. CE certificate
    7. The automatic down and feather filling machine is mainly used to produce jackets, sleeping bags, cushions, pillows, pads and comforters that made with down and feather material by computerized weighing system
    8. Three hopper-system (for one filling pipe) for constant supply
    9. The system is the vacuum filling function and does not hurt the material; it keeps the original elasticity and soft hand feeling
    10. Accurate weighing results; the tolerance is within 0.2 gram. It can be adjusted according to the production requirement and choose total error or single error from the control panel. This controls for the production quality and material waste
    11. One filling pipe can be handled by 1 operator by very simple operation which saves you a big amount of labor costs
    12. The key electrical components are imported, so that the quality is reliable and stable
    13. The whole line operation is controlled by PLC system
    14. According to different quantity and quality requirements the machine control panel can be set up for 100 different recipes and each recipe can be 80 sets different weight value for filling options
    15. Different customer requirements can be considered by our professional engineers to work on our machines to match the customer’s need
  2. Specifications
    1. Dimension: 7500 x 2500 x 3500 mm
    2. Voltage: 200/380/415 V, 50/60 Hz, 3 phase
    3. Power: 11 kW
    4. Filling range: 2 to 100 g, depending on the material
    5. Accuracy: ±0.5 g, ±1.0 g, ±1.5 g, depending on the filling weight
    6. Air supply: 0.5 to 0.8 MPa
    7. Weight: approx. 800 kg
    8. Filling time is 2 to 5 seconds
    9. Average filling time can be 2 to 5 seconds (depending on the weight and fabric) and the filling time can be adjusted
  3. Included Components
    1. Material hopper: dia. 1700 x 2500 mm, 1 piece
    2. Weighing system: 1200 x 1000 x 1000 mm, 3 pieces (6 sets)
    3. Filling table: 1200 x 550 x 1500 mm, 2 pieces
    4. PLC control system and control panel: 2 sets
    5. Air output box: 1200 x 1800 x 1700 mm, 1 piece
    6. Material feeding box: 1200 x 1200 x 2500 mm, 1 piece
    7. Blower: 6 pieces
    8. Pipe system: 1 set
